CoroTurn® 107, wytaczak A24T-SVUBL3 ID:5722322 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 906,50 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 550,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 752,75 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5722322
Opis

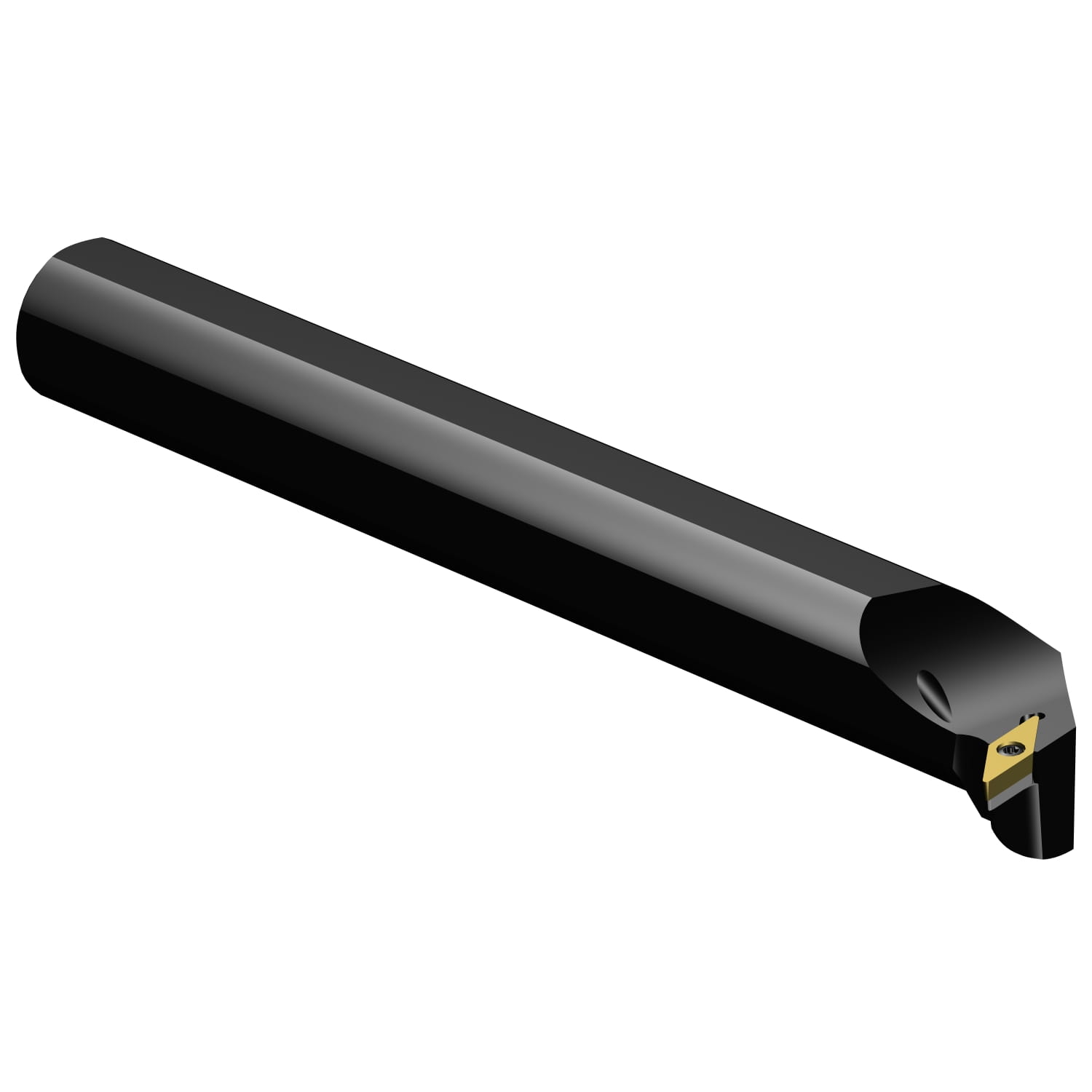

CoroTurn® 107, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, wytaczak |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | A..SVUBR/L (INCH) |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | SE |

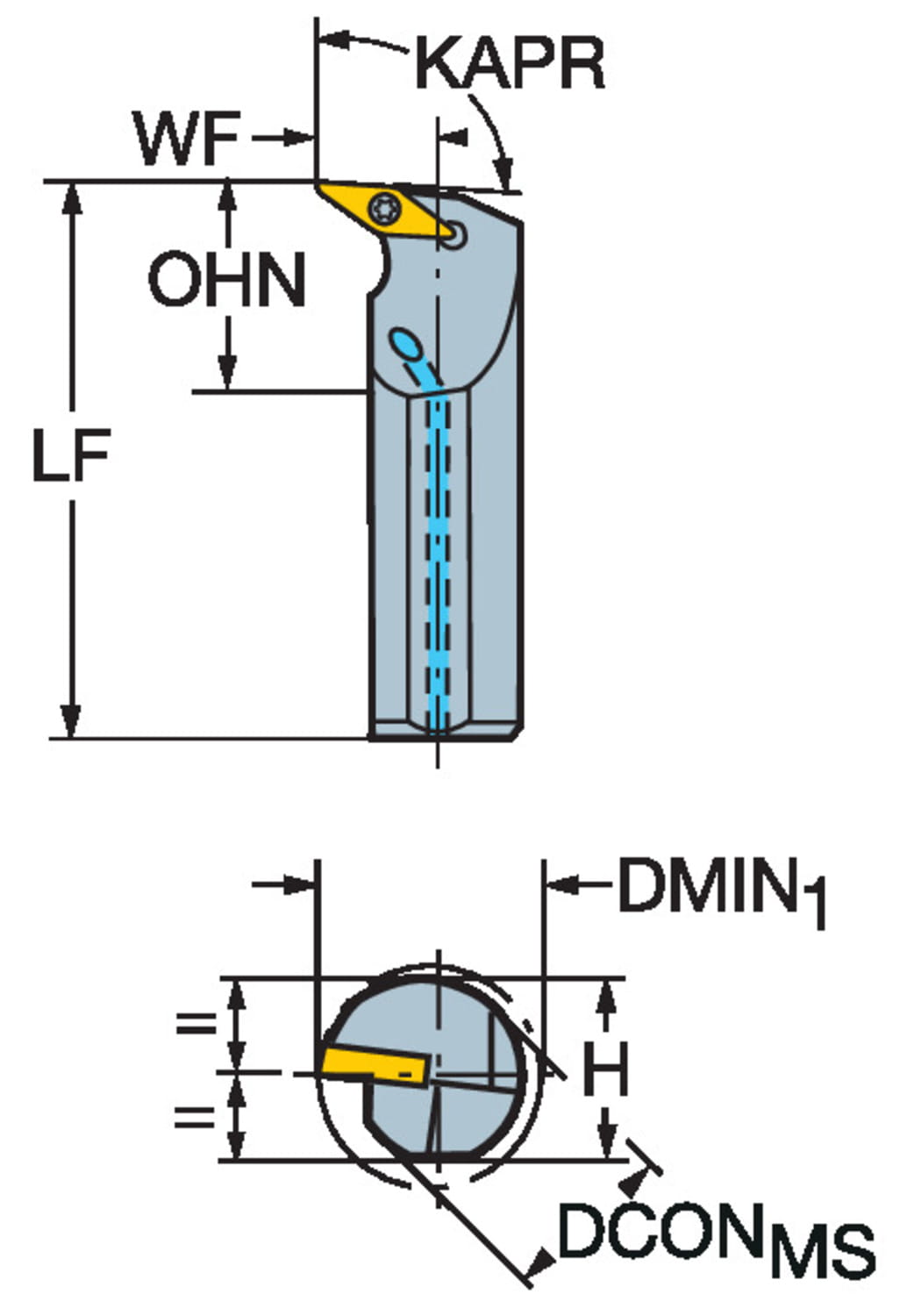

| Wymiary | |
| Dconms Connection Diameter | 1.5 inch |
| Dconms Connection Diameter | 38.1 mm |
| Dmin1 Minimum Bore Diameter | 2.12598 inch |
| Dmin1 Minimum Bore Diameter | 54 mm |
| H Shank Height | 1.37402 inch |
| H Shank Height | 34.9 mm |
| Lf Functional Length | 12 inch |
| Lf Functional Length | 304.8 mm |
| Waga | 4.956 lb |
| Waga | 2.248 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -inch: 1 1/2 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | VBMT 160408/ VCMT 160408 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 93 deg |
| Ohx Maximum Overhang | 6 inch |
| Ohx Maximum Overhang | 152.4 mm |
| Psir Tool Lead Angle | -3 deg |

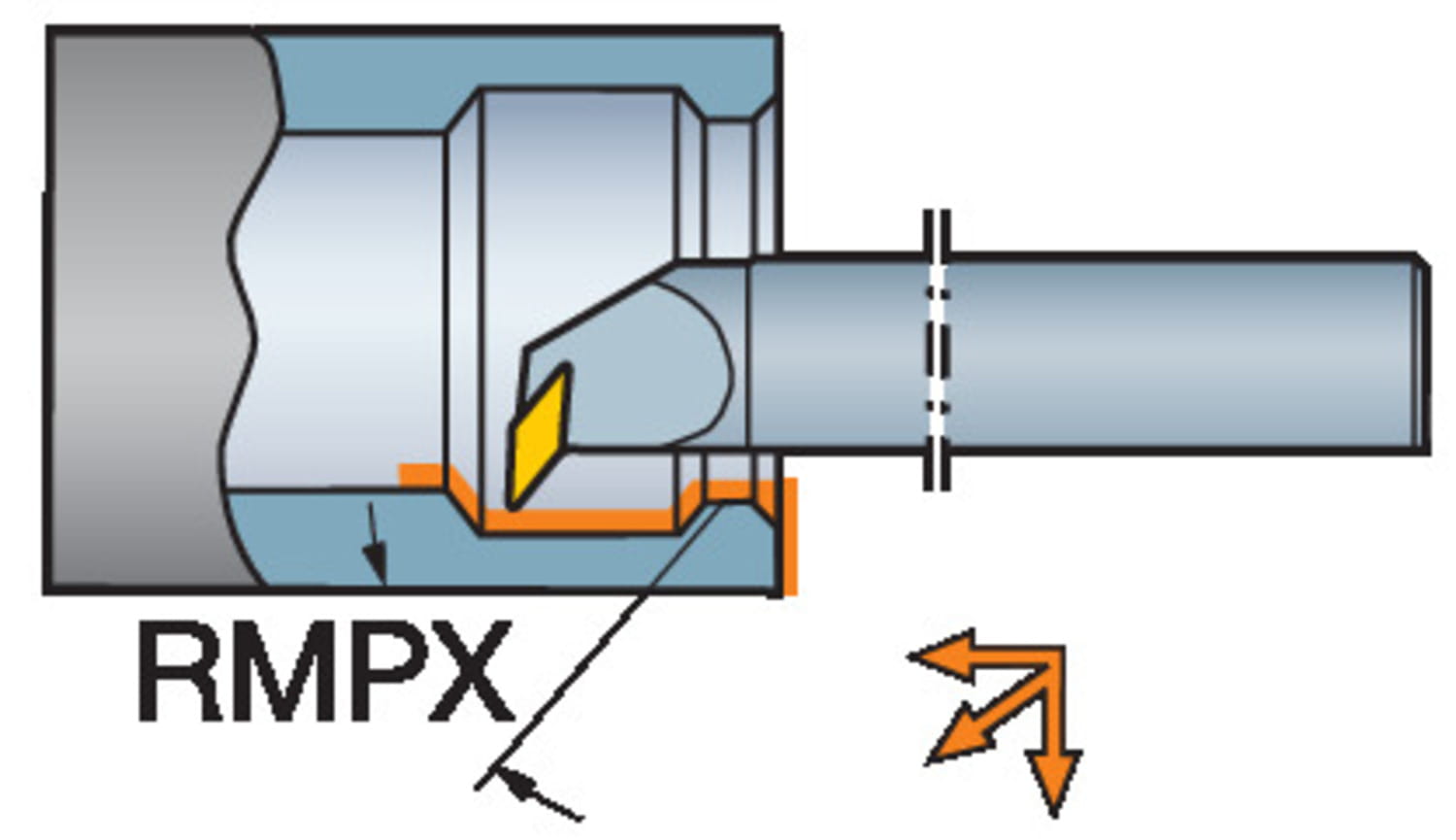

| Rmpx Maximum Ramping Angle | 50 deg |
| Inne parametry | |
| Ean Number | 12165985 |
