CoroTurn® 111, wytaczak A12M-SCLPL06 ID:5727583 Sandvik
Dostępność:
duża ilość
Cena brutto:
854,85 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
695,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
787,20 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5727583
Opis

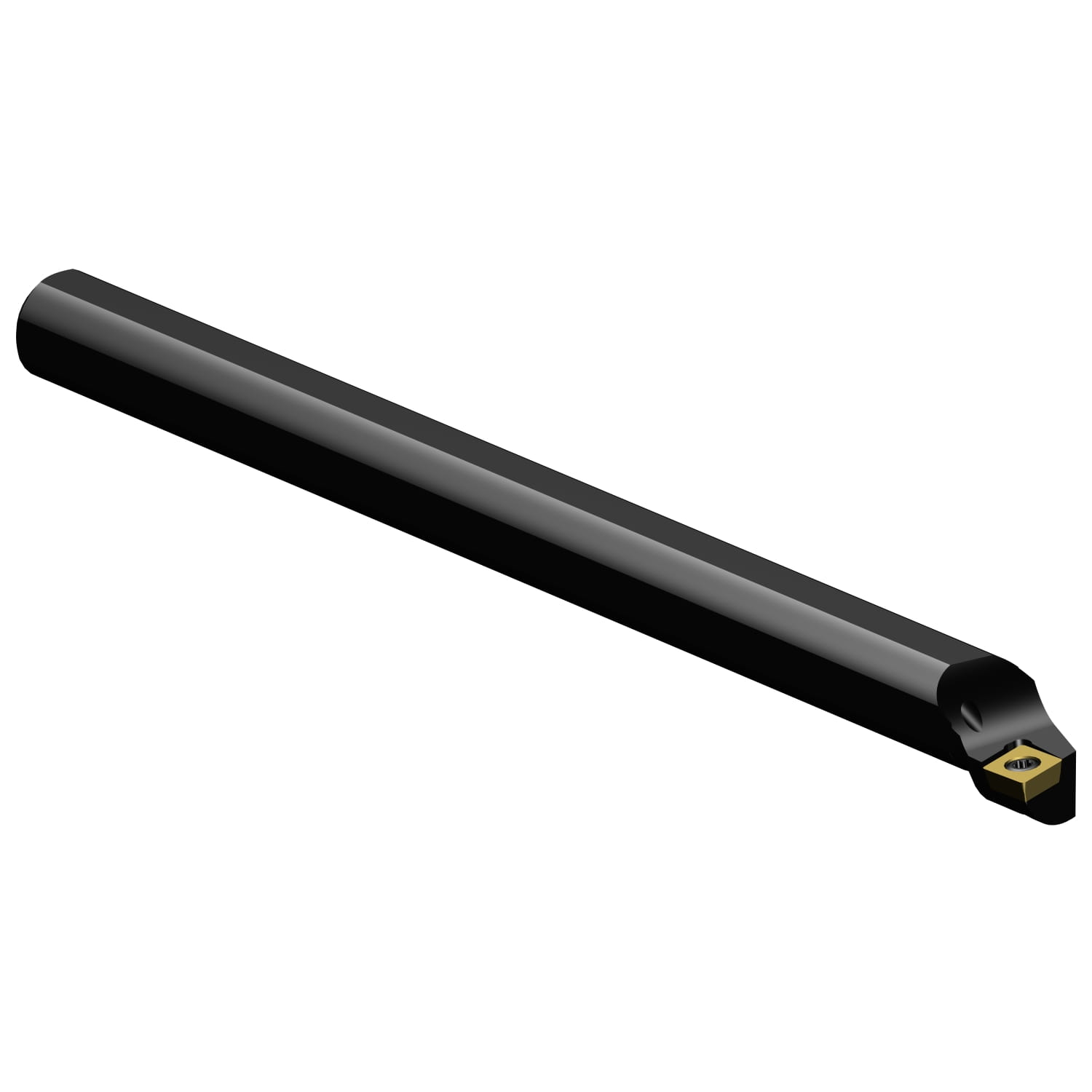

CoroTurn® 111, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 111, wytaczak |
| Rodzina produktów | 1054 |
| Product Subfamily Code (Tsyc) | A..SCLPR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | US |

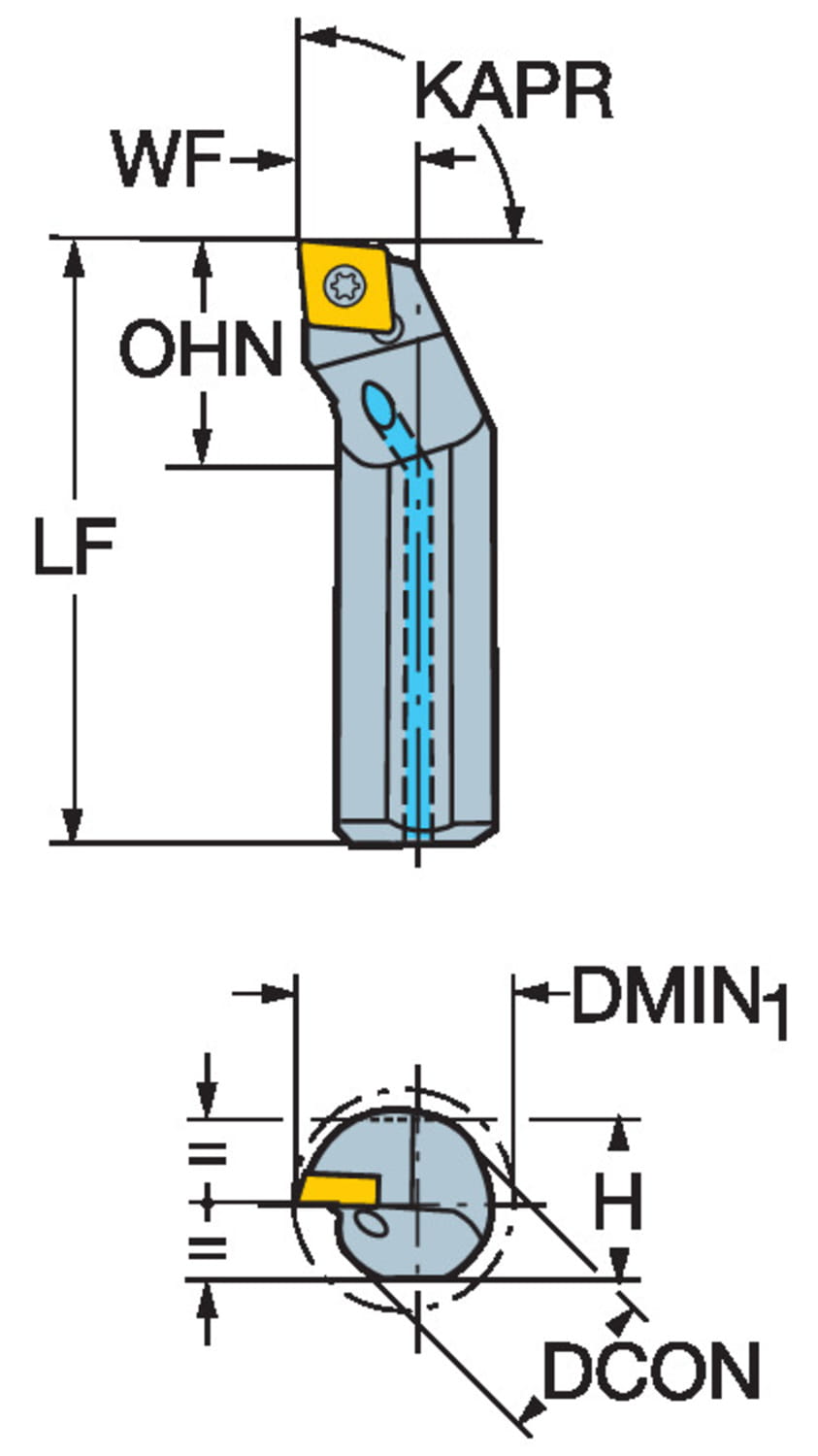

| Wymiary | |
| Dconms Connection Diameter | 0.472441 inch |
| Dconms Connection Diameter | 12 mm |
| Dmin1 Minimum Bore Diameter | 0.629921 inch |
| Dmin1 Minimum Bore Diameter | 16 mm |
| H Shank Height | 0.433071 inch |
| H Shank Height | 11 mm |
| Lf Functional Length | 5.90551 inch |
| Lf Functional Length | 150 mm |
| Waga | 0.220462 lb |
| Waga | 100 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -metric: 12 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CPMT 060204 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 1.88976 inch |
| Ohx Maximum Overhang | 48 mm |
| Psir Tool Lead Angle | -5 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 11143252 |
