CoroTurn® 300, część tokarska C6-3-80-MN00115-10C ID:7096823 Sandvik
Dostępność:
duża ilość
Cena brutto:
4 145,10 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 370,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 819,15 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7096823
Opis

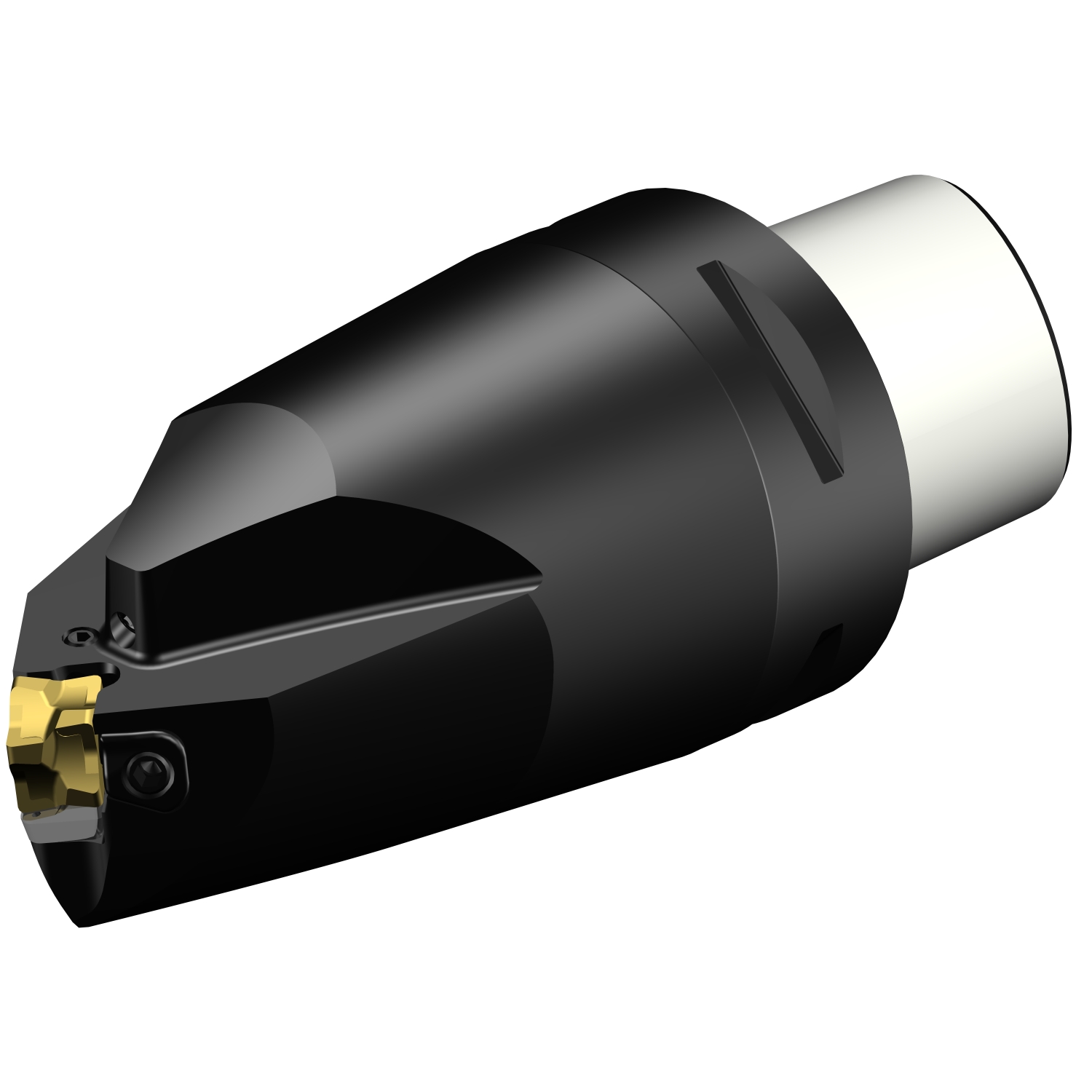

CoroTurn® 300, część tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 300, część tokarska |
| Rodzina produktów | 2075 |
| Product Subfamily Code (Tsyc) | Cx-3-80-MN |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |
| Wymiary | |
| Dconms Connection Diameter | 2.48031 inch |
| Dconms Connection Diameter | 63 mm |
| Dmin2 Minimum Bore Diameter | 9.84252 inch |
| Dmin2 Minimum Bore Diameter | 250 mm |
| Lf Functional Length | 4.52756 inch |
| Lf Functional Length | 115 mm |
| Waga | 4.51728 lb |
| Waga | 2.049 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C6 |
| Bams Machine Side Body Angle | 45 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CoroTurn 300 -3-80-101108 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | N |

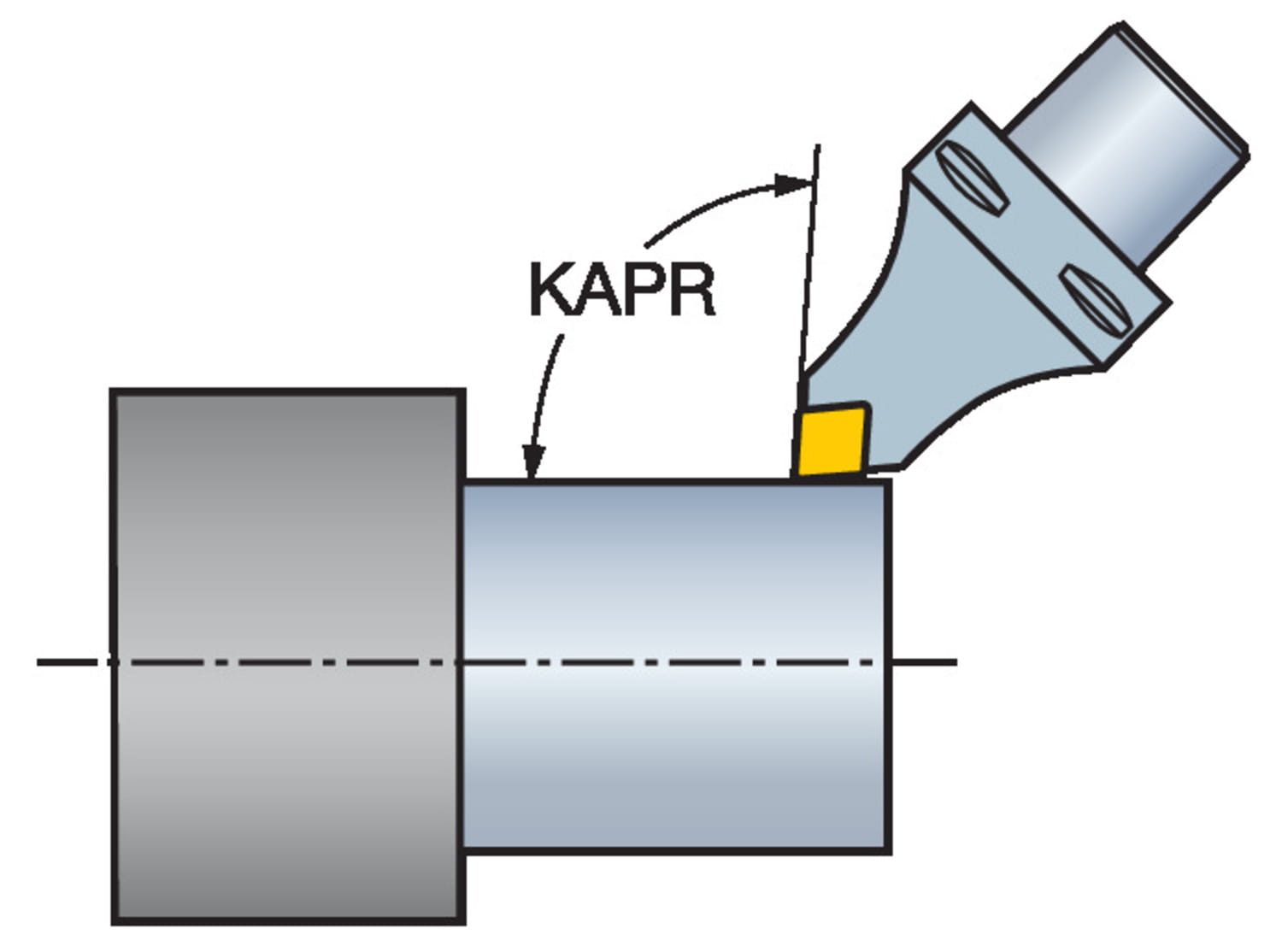

| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 4.52756 inch |
| Ohx Maximum Overhang | 115 mm |
| Psir Tool Lead Angle | -5 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 7323221263355 |
