CoroTurn® 300 QS, nóż tokarski QS-3-80-LL12-22-10C ID:6814415 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 771,20 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 440,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 629,75 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6814415
Opis

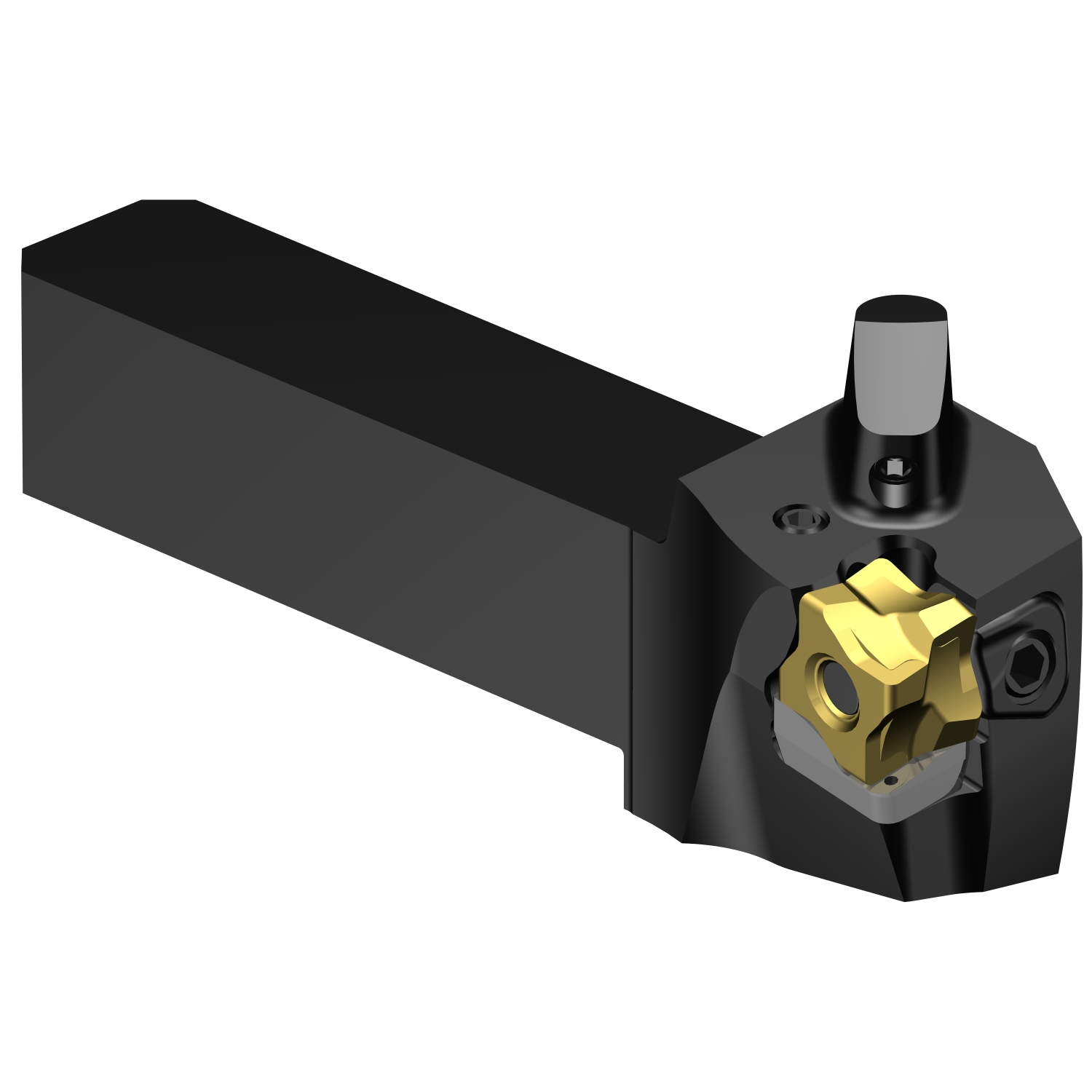

CoroTurn® 300 QS, nóż tokarski
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 300 QS, nóż tokarski |
| Rodzina produktów | 2075 |
| Product Subfamily Code (Tsyc) | QS-3-80-LR/L (INCH) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |
| Wymiary | |
| B Shank Width | 0.75 inch |
| B Shank Width | 19.05 mm |
| H Shank Height | 0.75 inch |
| H Shank Height | 19.05 mm |
| Lf Functional Length | 4.09154 inch |
| Lf Functional Length | 103.925 mm |
| Waga | 0.685638 lb |
| Waga | 311 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Rectangular shank -inch: 3/4 x 3/4 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CoroTurn 300 -3-80-101108 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 94.7 deg |
| Ohx Maximum Overhang | 2.125 inch |
| Ohx Maximum Overhang | 53.975 mm |
| Psir Tool Lead Angle | -4.7 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 7323220028177 |
