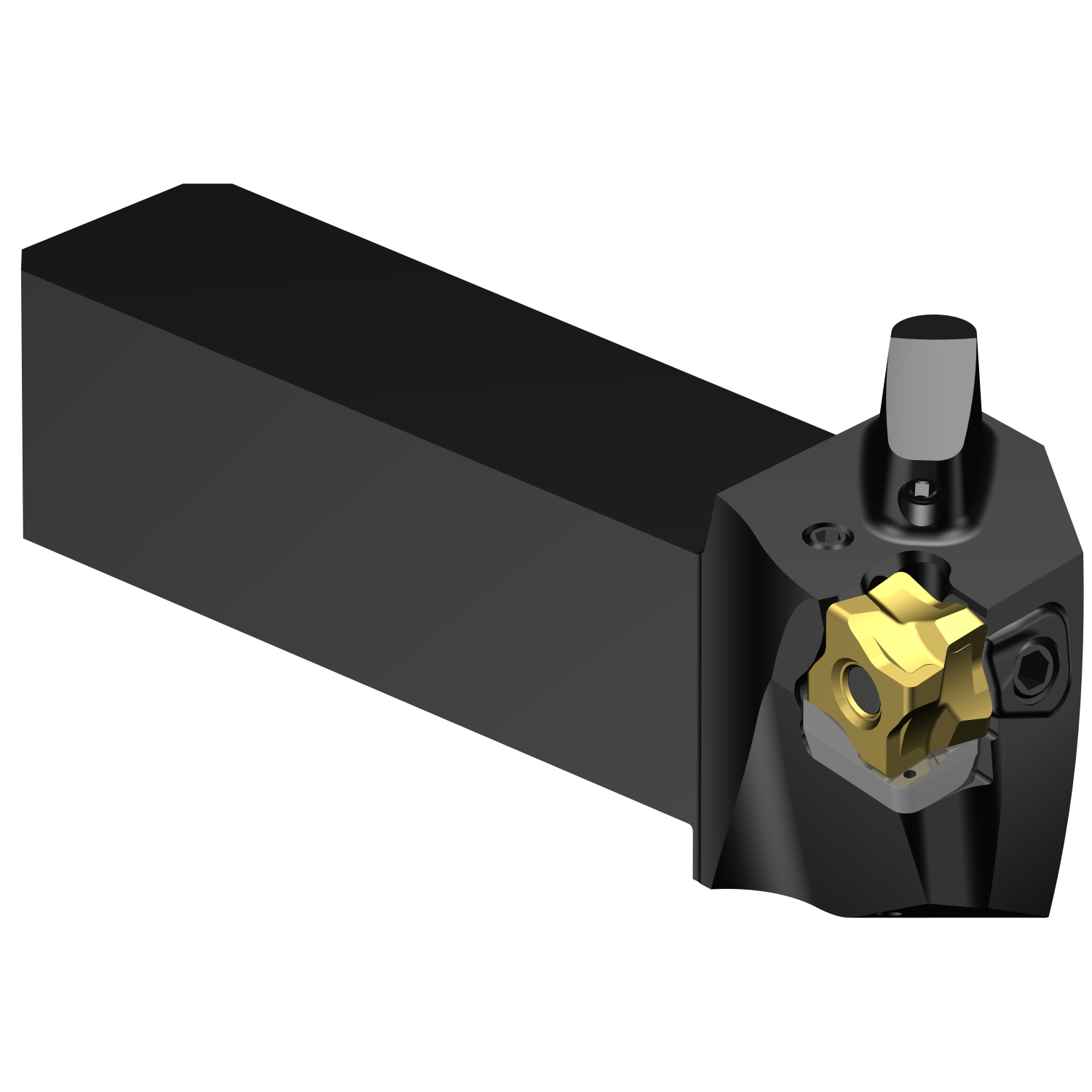

CoroTurn® 300 QS, nóż tokarski QS-3-80-LL16-20-10C ID:6814417 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 869,60 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 520,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 722,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6814417
Opis
CoroTurn® 300 QS, nóż tokarski
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 300 QS, nóż tokarski |
| Rodzina produktów | 2075 |
| Product Subfamily Code (Tsyc) | QS-3-80-LR/L (INCH) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |

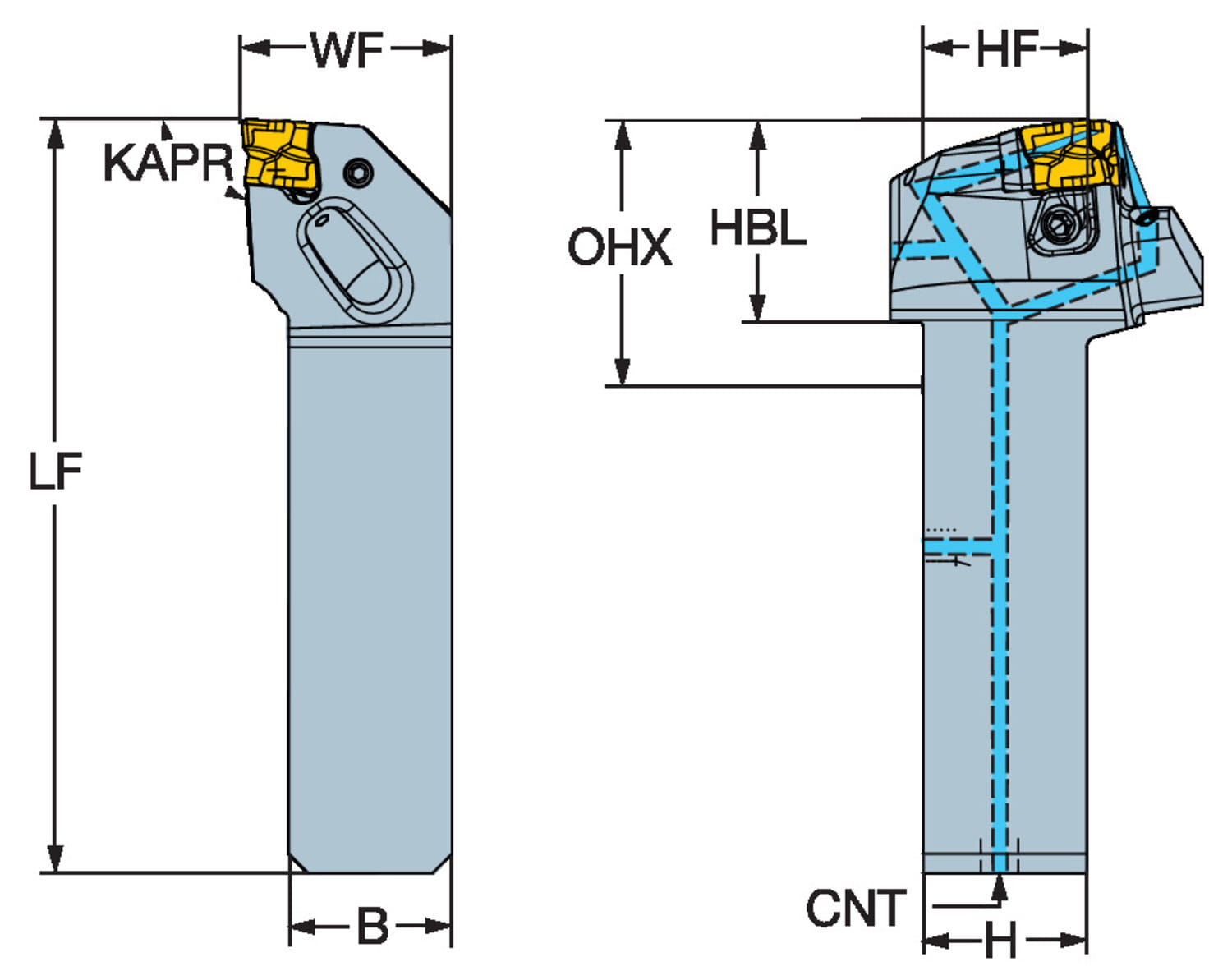

| Wymiary | |
| B Shank Width | 1 inch |
| B Shank Width | 25.4 mm |
| H Shank Height | 1 inch |
| H Shank Height | 25.4 mm |
| Lf Functional Length | 4.55709 inch |
| Lf Functional Length | 115.75 mm |
| Waga | 1.24782 lb |
| Waga | 566 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Rectangular shank -inch: 1 x 1 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CoroTurn 300 -3-80-101108 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | L |

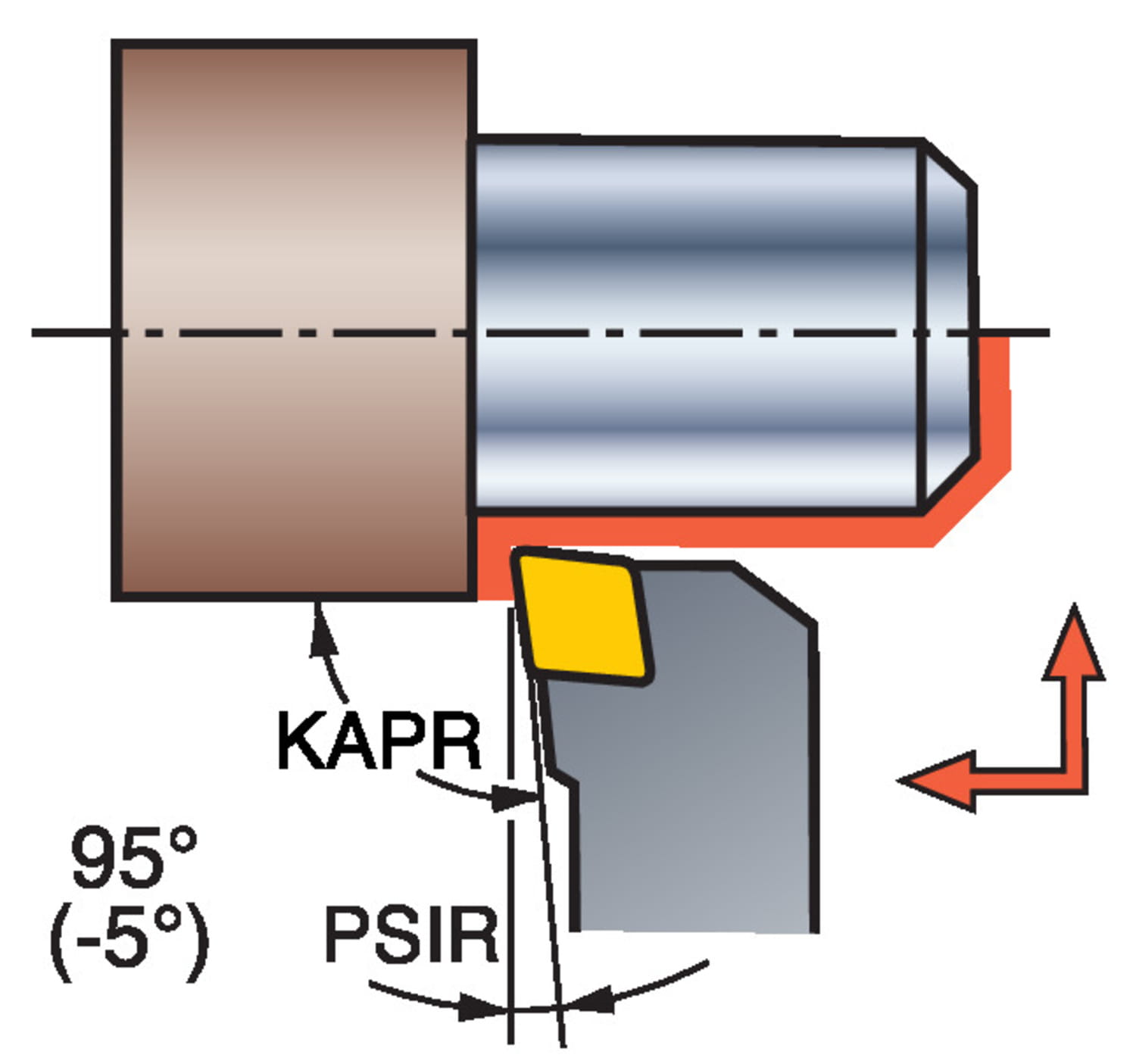

| Kapr Tool Cutting Edge Angle | 94.7 deg |
| Ohx Maximum Overhang | 2.25 inch |
| Ohx Maximum Overhang | 57.15 mm |
| Psir Tool Lead Angle | -4.7 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 7323220028191 |
