CoroTurn® TR, część tokarska C6-TR-V13VBN-00065C1 ID:8442411 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 812,40 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 286,50 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 308,70 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
8442411
Opis

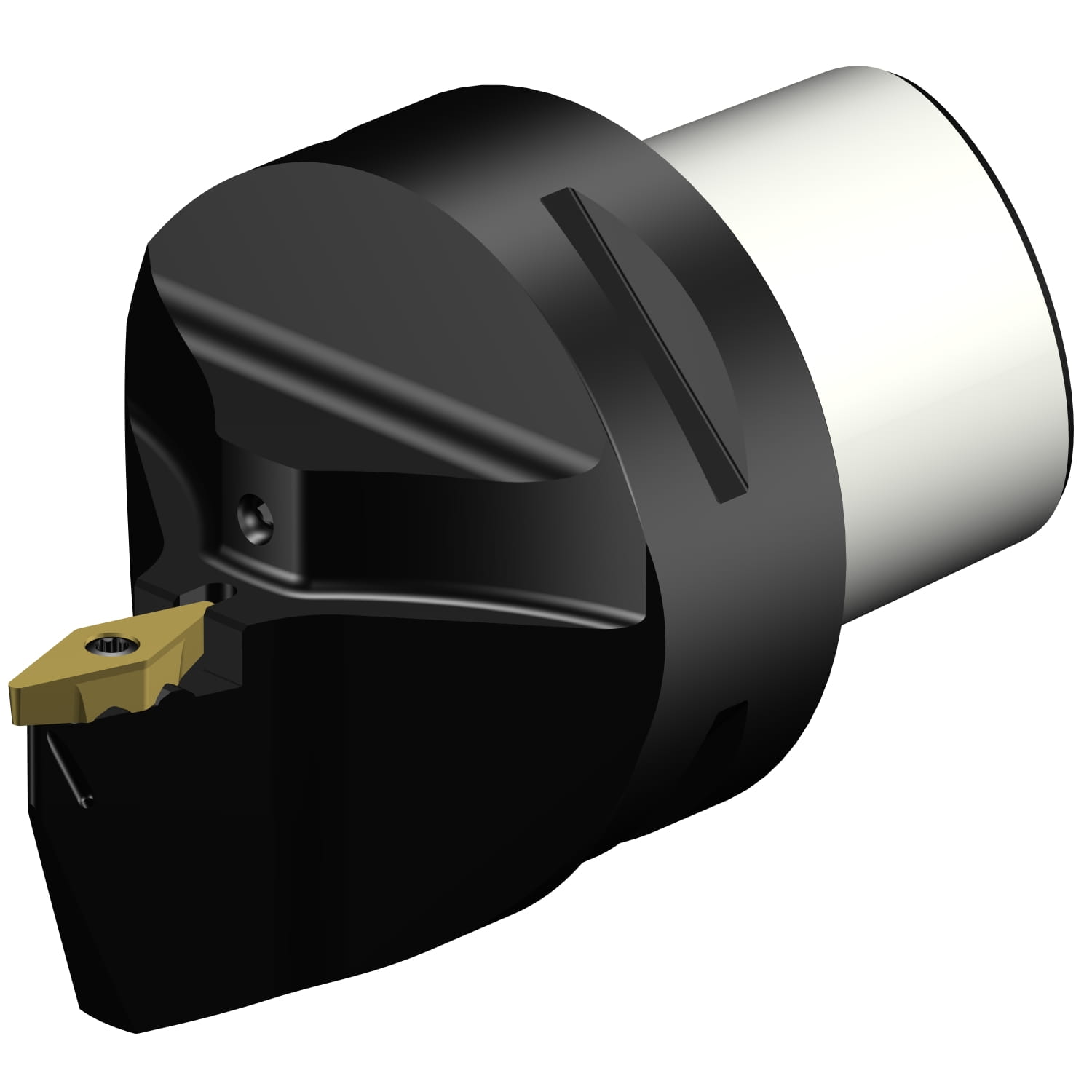

CoroTurn® TR, część tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® TR, część tokarska |
| Rodzina produktów | 1056 |
| Product Subfamily Code (Tsyc) | Cx-TR-V13VBN..C |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |
| Wymiary | |

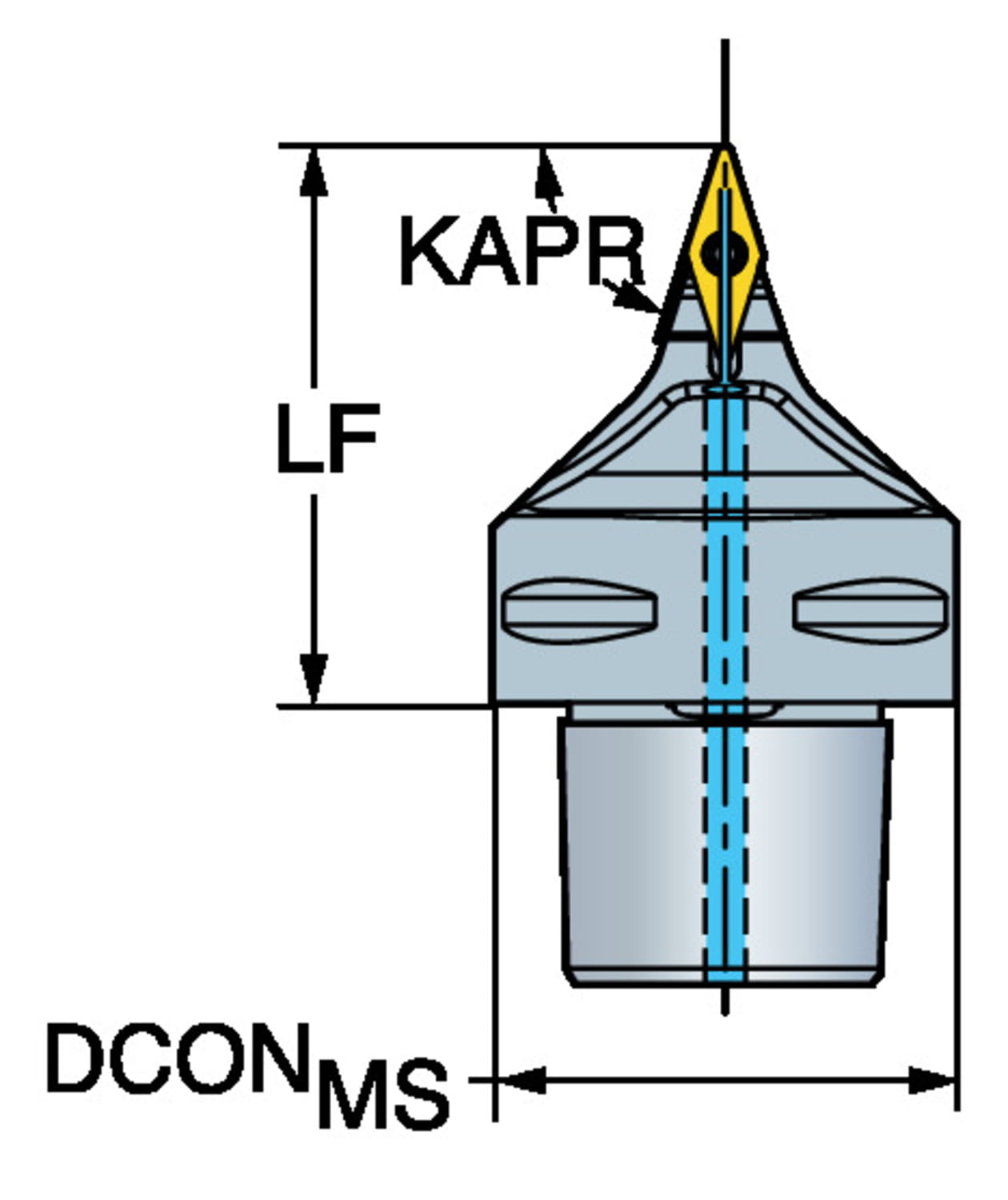

| Dconms Connection Diameter | 2.48031 inch |
| Dconms Connection Diameter | 63 mm |

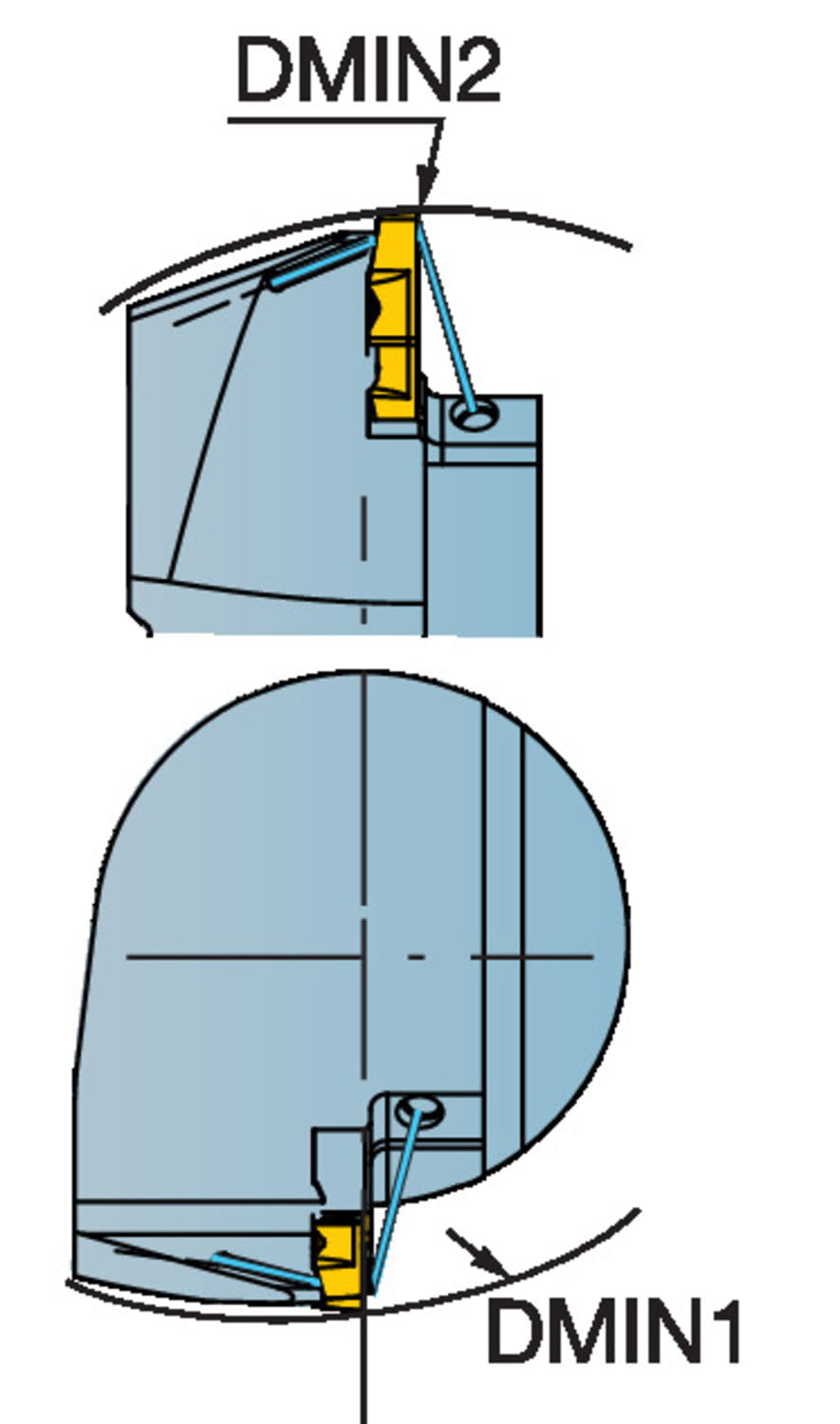

| Dmin2 Minimum Bore Diameter | 7.48031 inch |
| Dmin2 Minimum Bore Diameter | 190 mm |
| Lf Functional Length | 2.55906 inch |
| Lf Functional Length | 65 mm |
| Waga | 2.20462 lb |
| Waga | 1 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C6 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CoroTurn TR ( TR-VB1308 ) |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | N |
| Kapr1 Tool Cutting Edge Angle | 72.5 deg |
| Ohx Maximum Overhang | 2.55906 inch |
| Ohx Maximum Overhang | 65 mm |
| Psir Tool Lead Angle | 17.5 deg |

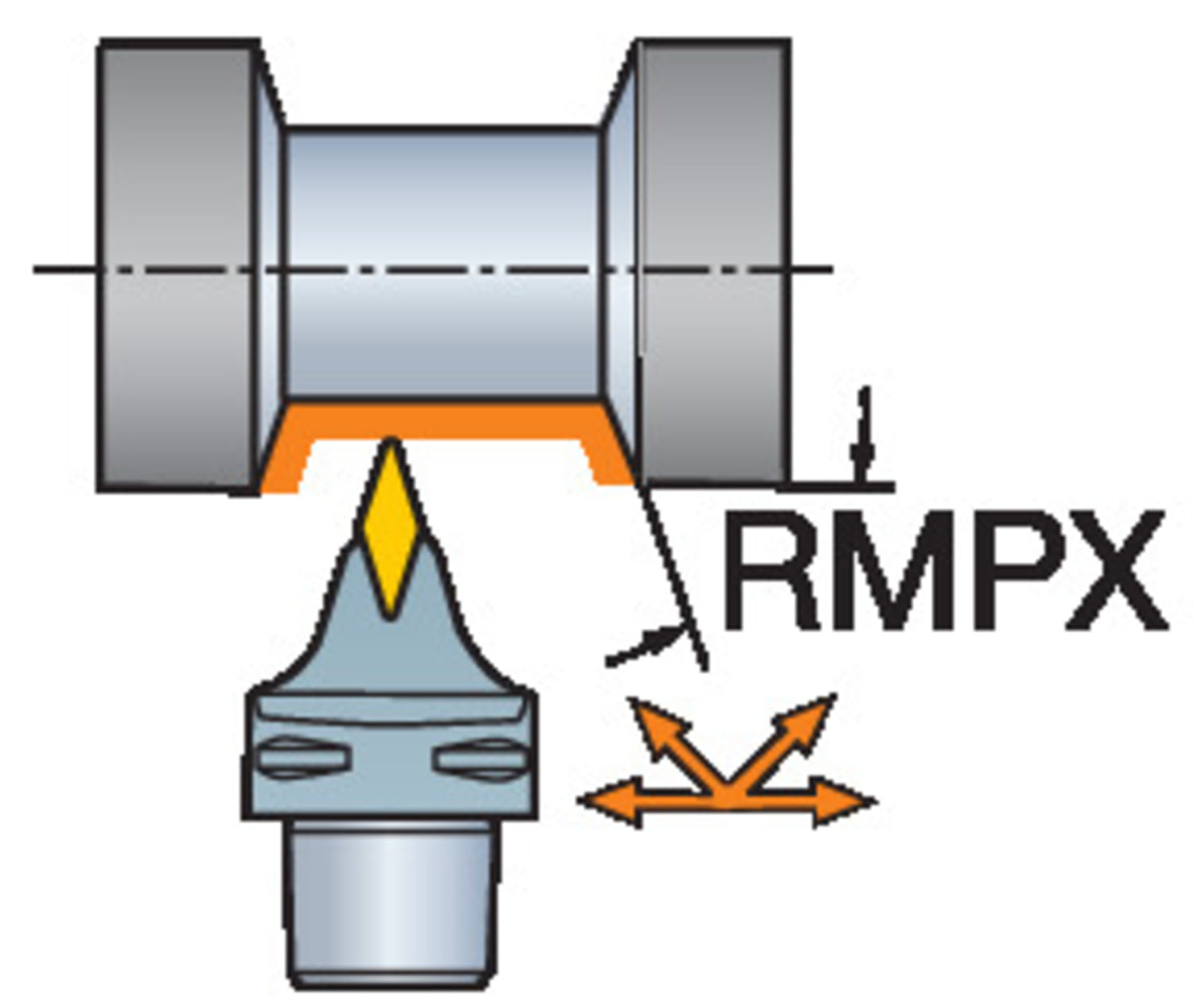

| Rmpx Maximum Ramping Angle | 70 deg |
| Inne parametry | |
| Ean Number | 7323227559681 |
