CoroTurn® XS, węglikowy wytaczak do toczenia gwintów CXS-06TH150VM-6215R7014 ID:7940802 Sandvik
Dostępność:
duża ilość
Cena brutto:
627,30 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
510,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
738,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7940802
Opis

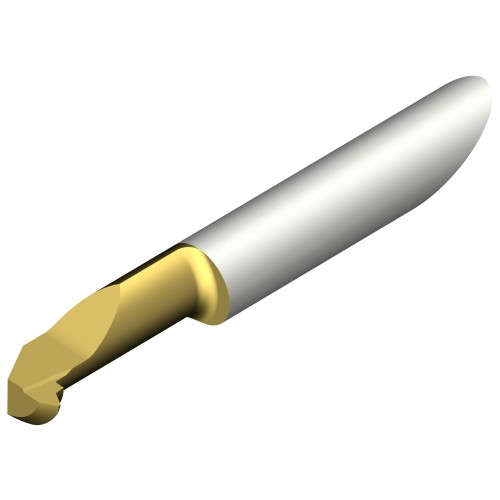

CoroTurn® XS, węglikowy wytaczak do toczenia gwintów
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® XS, węglikowy wytaczak do toczenia gwintów |
| Rodzina produktów | 1055 |
| Product Subfamily Code (Tsyc) | CXS-xxTH..VM..R |
| Rodzina produktów | Other Cutting Materials & Inserts |
| Coating Type | Uncoated |
| Coating Process Type | UNCOAT |
| Country Of Origin | GB |
| Substrate Type | Cubic Boron Nitride |
| Wymiary | |
| Dconms Connection Diameter | 0.23622 inch |
| Dconms Connection Diameter | 6 mm |
| Dmin1 Minimum Bore Diameter | 0.244094 inch |
| Dmin1 Minimum Bore Diameter | 6.2 mm |
| Lf Functional Length | 1.4685 inch |
| Lf Functional Length | 37.3 mm |
| Lu Usable Length | 0.590551 inch |
| Lu Usable Length | 15 mm |
| Waga | 0.046297 lb |
| Waga | 21 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | CoroTurn XS -metric: 6 |
| Cnsc Coolant Entry Style Code | 0: without coolant |
| Gatunek | 7014 |
| Hand Hand | R |
| Ohx Maximum Overhang | 0.675591 inch |
| Ohx Maximum Overhang | 17.16 mm |
| Thft Thread Form Type | VP60 |
| Tmc1 Iso Material Classification Level All | SH |
| Tpin Minimum Threads Per Inch | 16 |
| Tpix Maximum Threads Per Inch | 18 |
| Tpn Minimum Thread Pitch | 0.059055 inch |
| Tpn Minimum Thread Pitch | 1.5 mm |
| Tpx Maximum Thread Pitch | 0.068898 inch |
| Tpx Maximum Thread Pitch | 1.75 mm |
| Inne parametry | |
| Ean Number | 7323225429283 |
