Coromant Capto® 90°, adapter redukcyjny C5-L-C4-R-44035 ID:6423374 Sandvik
Dostępność:
duża ilość
Cena brutto:
9 827,70 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
7 990,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
9 046,65 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6423374
Opis

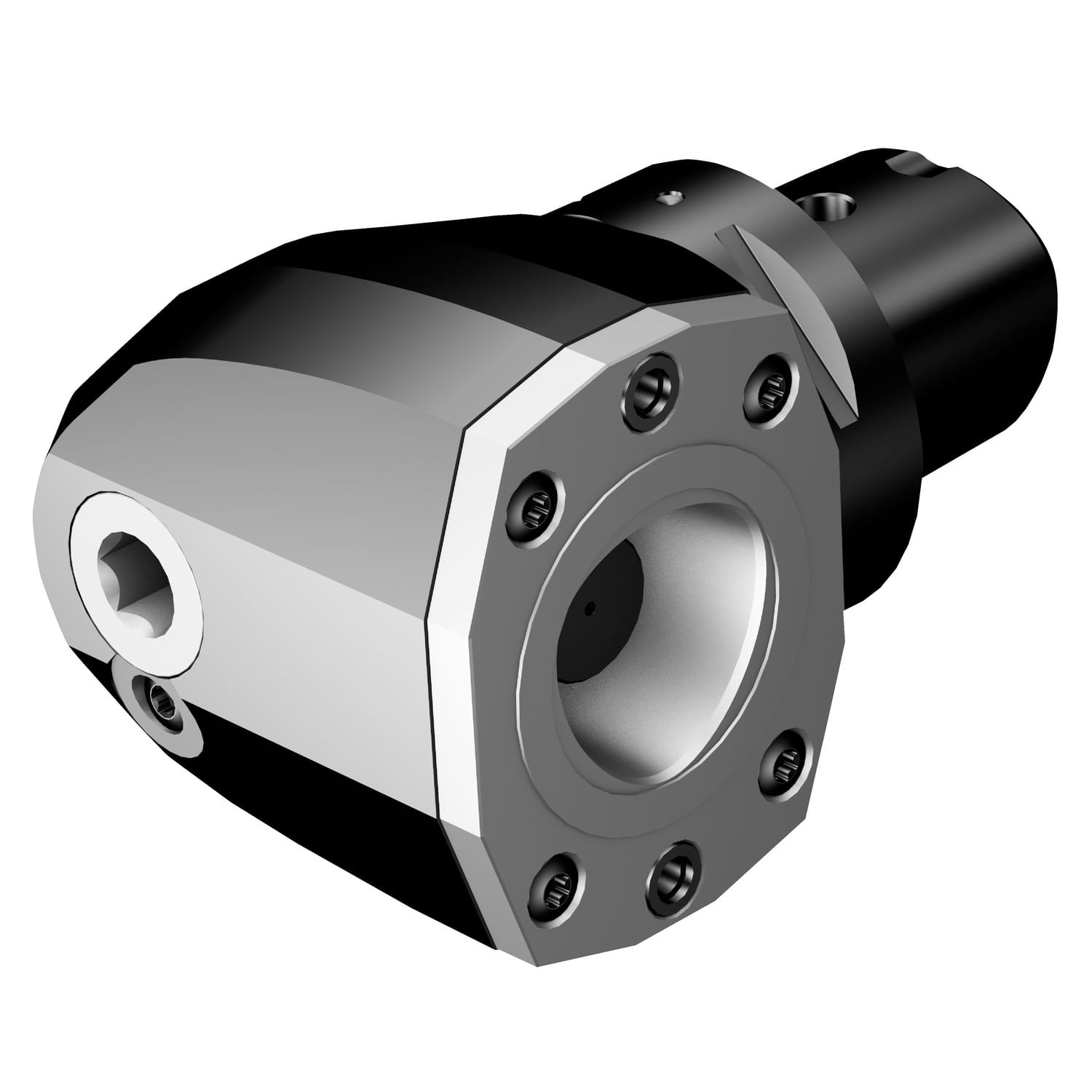

Coromant Capto® 90°, adapter redukcyjny
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Coromant Capto® 90°, adapter redukcyjny |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-R/L-Cx-R/L |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

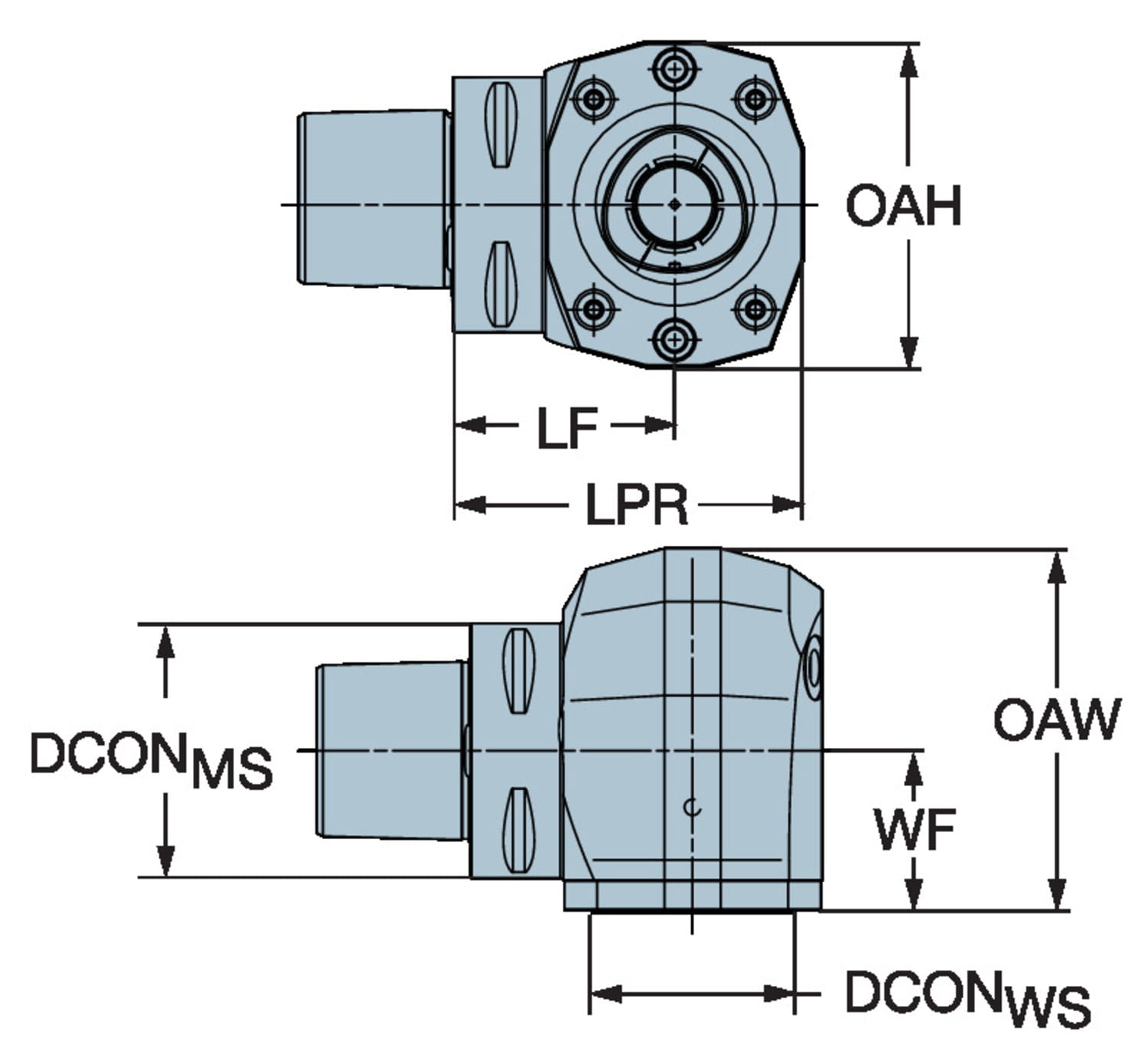

| Wymiary | |
| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |
| Dconws Connection Diameter | 1.5748 inch |
| Dconws Connection Diameter | 40 mm |
| Dfc Functional Diameter | 1.10236 inch |
| Dfc Functional Diameter | 28 mm |
| Lf Functional Length | 1.73228 inch |
| Lf Functional Length | 44 mm |
| Oah Overall Height | 2.59843 inch |
| Oah Overall Height | 66 mm |
| Oaw Overall Width | 3.11024 inch |
| Oaw Overall Width | 79 mm |
| Waga | 3.88675 lb |
| Waga | 1.763 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C5 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (segment clamping) -size C4 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Dpc Damping Property | no |
| Hand Hand | L |
| Ohx Maximum Overhang | 1.73228 inch |
| Ohx Maximum Overhang | 44 mm |
| Inne parametry | |
| Ean Number | 26423374 |
