Coromant Capto® 90°, adapter redukcyjny C6-R-C5-R-55040 ID:6423368 Sandvik
Dostępność:
duża ilość
Cena brutto:
11 297,55 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
9 185,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
10 399,65 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6423368
Opis

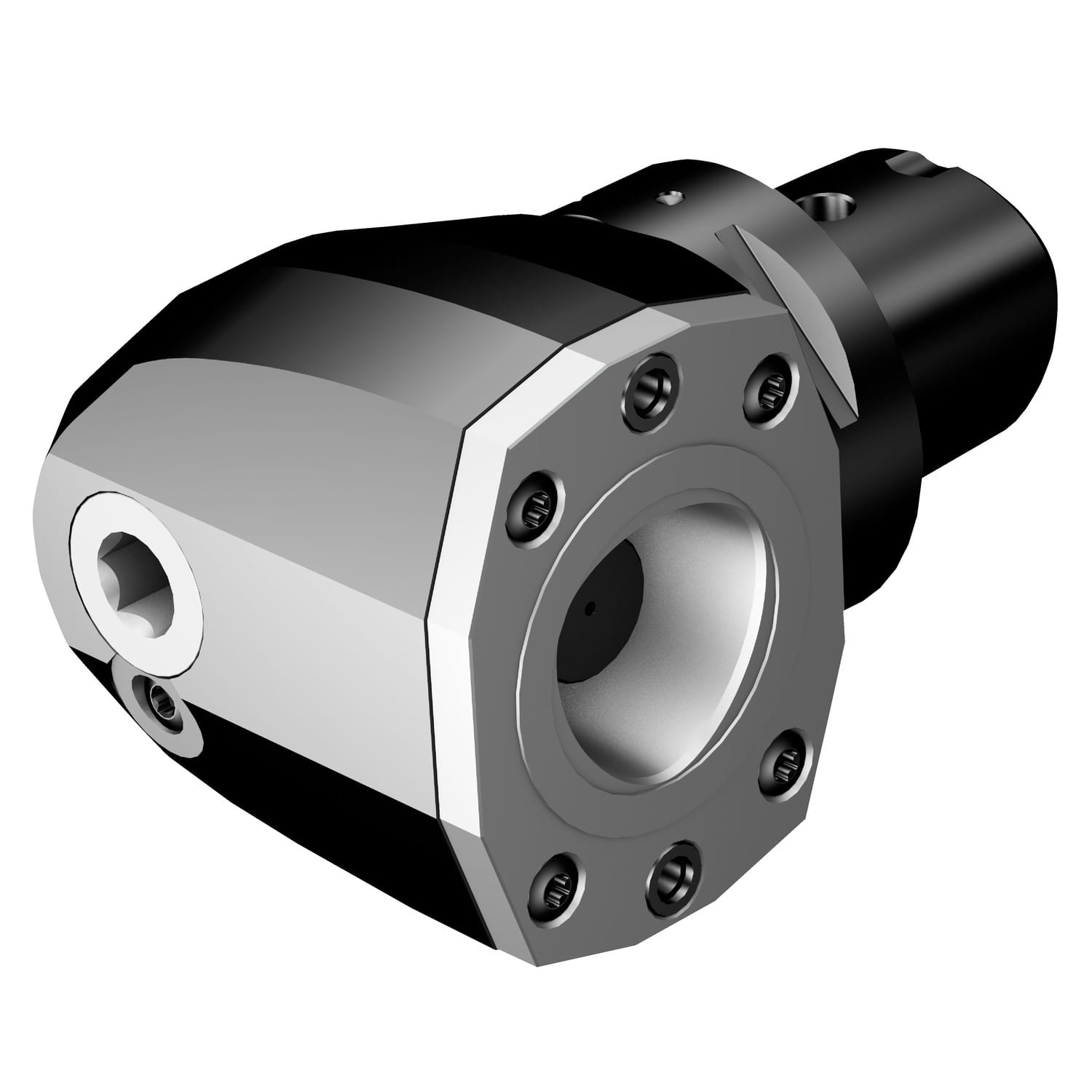

Coromant Capto® 90°, adapter redukcyjny
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Coromant Capto® 90°, adapter redukcyjny |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-R/L-Cx-R/L |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

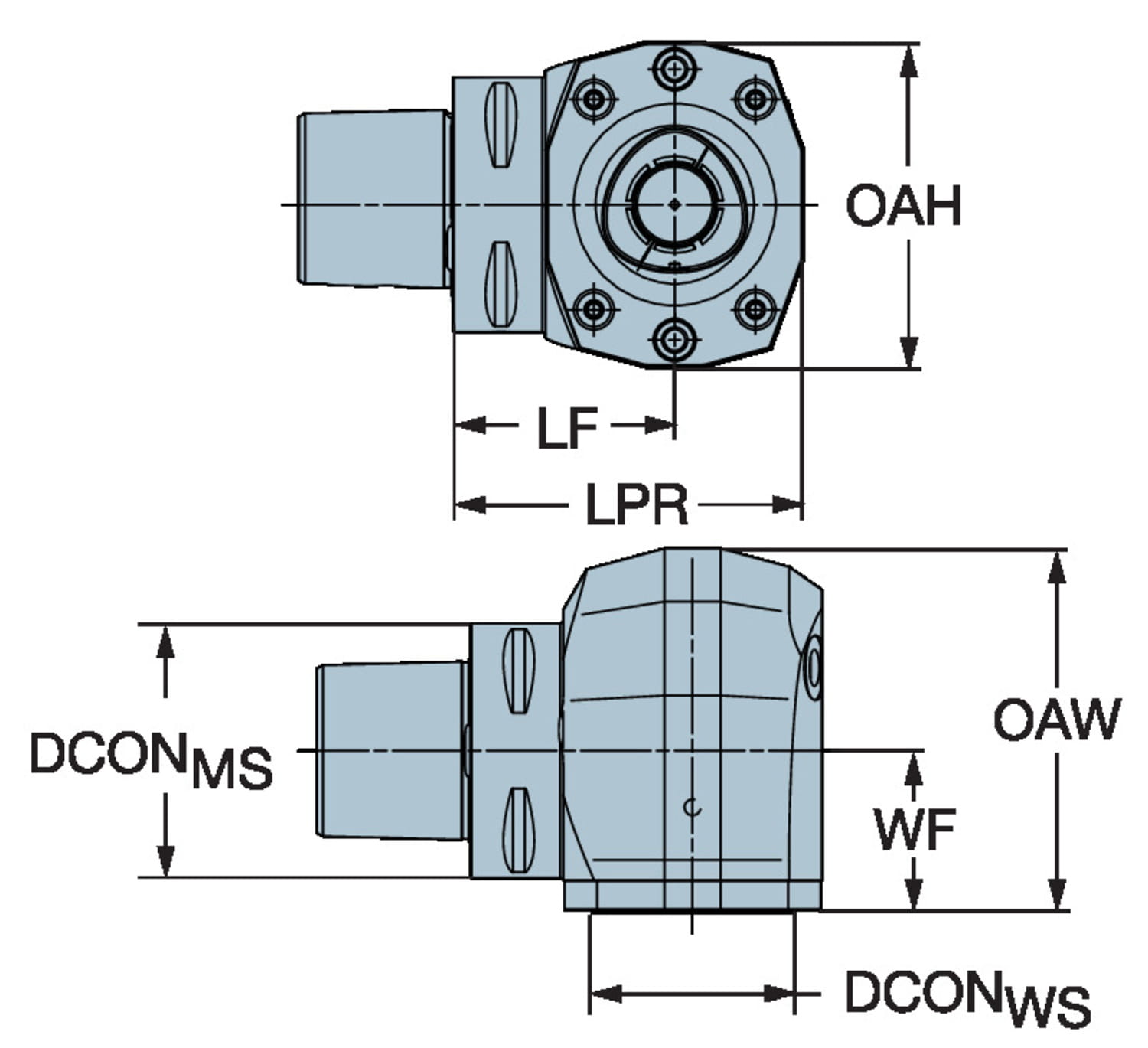

| Wymiary | |
| Dconms Connection Diameter | 2.48031 inch |
| Dconms Connection Diameter | 63 mm |
| Dconws Connection Diameter | 1.9685 inch |
| Dconws Connection Diameter | 50 mm |
| Dfc Functional Diameter | 1.37795 inch |
| Dfc Functional Diameter | 35 mm |
| Lf Functional Length | 2.16535 inch |
| Lf Functional Length | 55 mm |
| Oah Overall Height | 3.18898 inch |
| Oah Overall Height | 81 mm |
| Oaw Overall Width | 3.54331 inch |
| Oaw Overall Width | 90 mm |
| Waga | 7.00189 lb |
| Waga | 3.176 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C6 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (segment clamping) -size C5 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Dpc Damping Property | no |
| Hand Hand | R |
| Ohx Maximum Overhang | 2.16535 inch |
| Ohx Maximum Overhang | 55 mm |
| Inne parametry | |
| Ean Number | 26423368 |
