Coromant Capto® 90°, adapter redukcyjny C8-L-C6-L-72050 ID:6423367 Sandvik
Dostępność:
duża ilość
Cena brutto:
12 312,30 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
10 010,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
11 334,45 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6423367
Opis

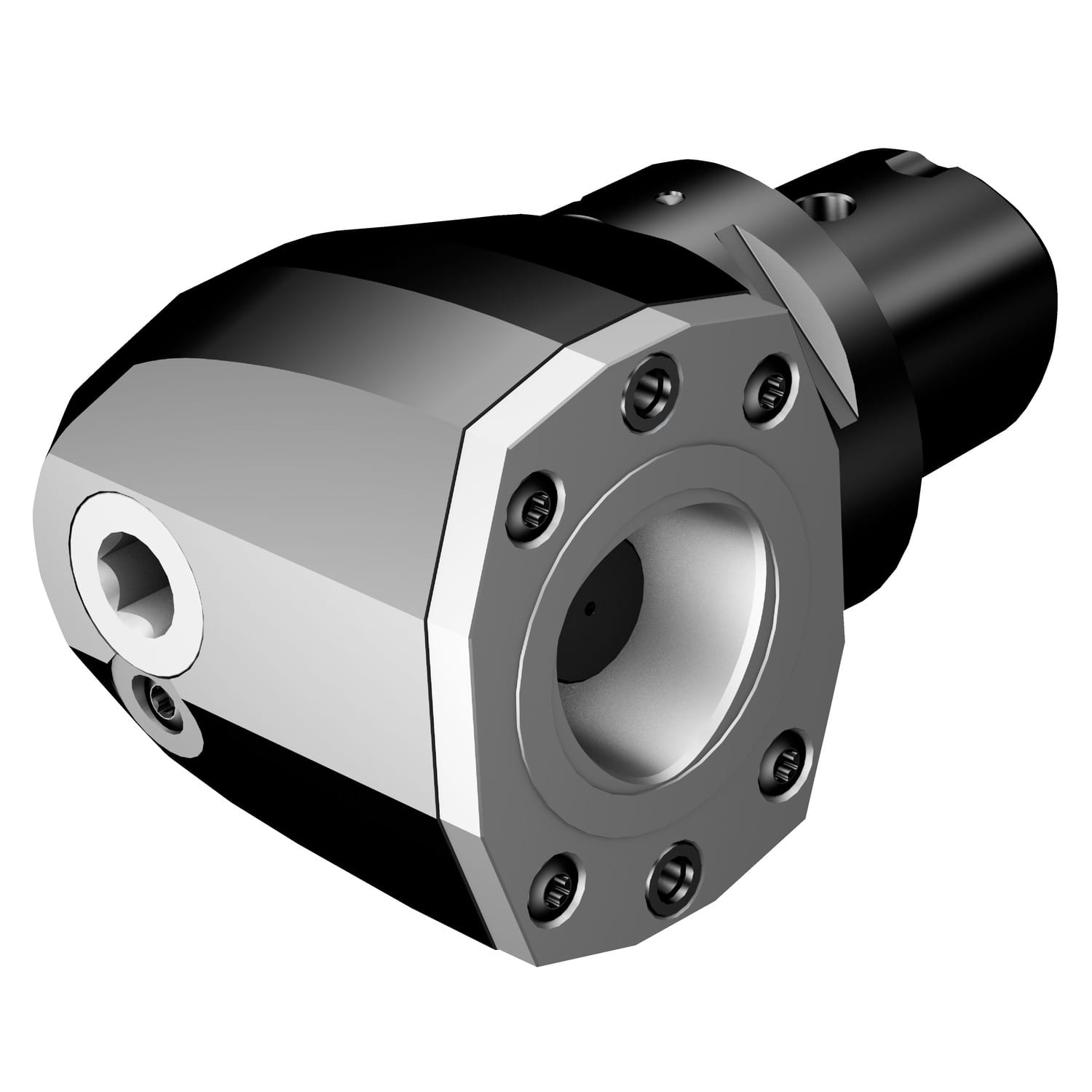

Coromant Capto® 90°, adapter redukcyjny
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | Coromant Capto® 90°, adapter redukcyjny |
| Rodzina produktów | 1147 |
| Product Subfamily Code (Tsyc) | Cx-R/L-Cx-R/L |
| Rodzina produktów | System Products |
| Country Of Origin | DE |

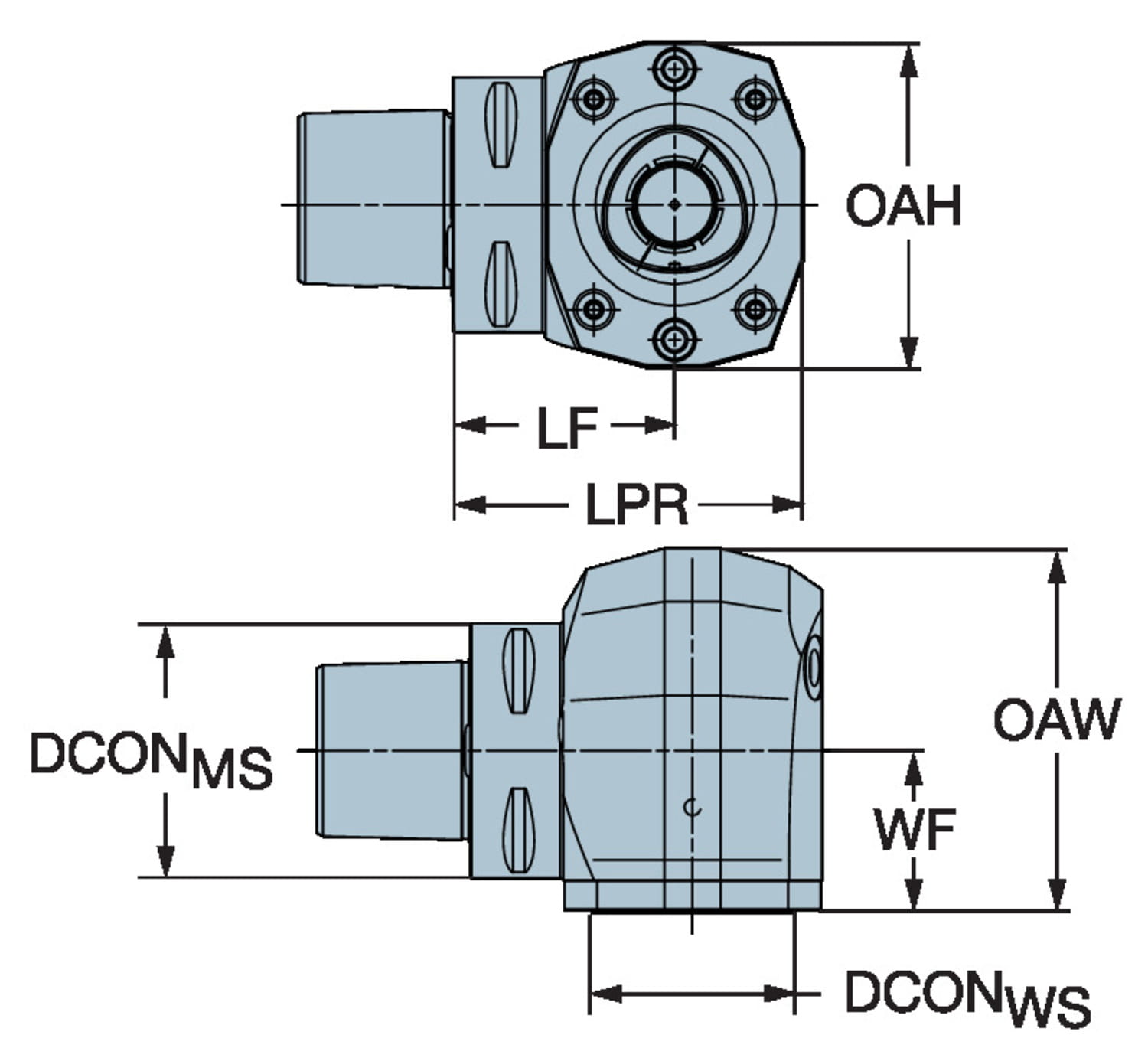

| Wymiary | |
| Dconms Connection Diameter | 3.14961 inch |
| Dconms Connection Diameter | 80 mm |
| Dconws Connection Diameter | 2.48031 inch |
| Dconws Connection Diameter | 63 mm |
| Dfc Functional Diameter | 1.73228 inch |
| Dfc Functional Diameter | 44 mm |
| Lf Functional Length | 2.71654 inch |
| Lf Functional Length | 69 mm |
| Oah Overall Height | 4.11417 inch |
| Oah Overall Height | 104.5 mm |
| Oaw Overall Width | 4.29134 inch |
| Oaw Overall Width | 109 mm |
| Waga | 13.7635 lb |
| Waga | 6.243 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C8 |
| Adintws Adaptive Interface Workpiece Direction | Coromant Capto (segment clamping) -size C6 |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cxsc Coolant Exit Style Code | 1: axial concentric exit |
| Dcp Data Chip Provision | no |
| Dpc Damping Property | no |
| Hand Hand | L |
| Ohx Maximum Overhang | 2.71654 inch |
| Ohx Maximum Overhang | 69 mm |
| Inne parametry | |
| Ean Number | 26423367 |
