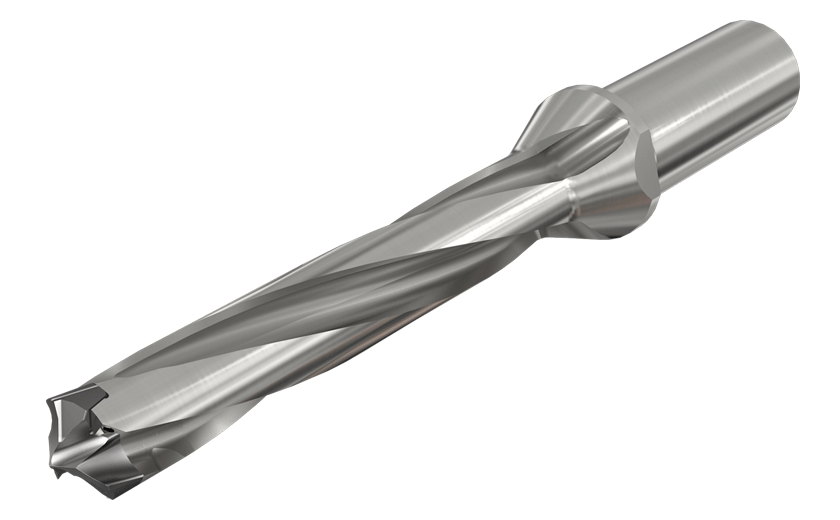

D3N 120-060-16R-5D-Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 5xD

Dostępność: duża ilość

Cena brutto: 1 833,72 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1833.72

Cena netto: 1 490,83 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 431,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3363144

D3N 120-060-16R-5D

Podstawowe informacje
FamilyName	D3N R-5D
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3363144
ProductName	D3N 120-060-16R-5D
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 5xD
FamilyShortDesc	Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 5xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3363144
Remarks	Do not mount smaller drilling heads other than the specified range of the drill body
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1680
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3363144
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	16 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	12 mm
Cutting Diameter Maximum (DCX)	12.4 mm
Cutting Diameter Minimum (DCN)	12 mm
Decimal Equivalent
Flange Diameter (DF)	20 mm
Insert Seat Size Code (SSC)	12
Master Insert Identification (MIID)	H3P 120
Overall Length (OAL)	132.92 mm
Protruding Length (LPR)	84.9 mm
Point Length (PL)	2.71 mm
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	48 mm
Usable Length (LU)	62.71 mm
