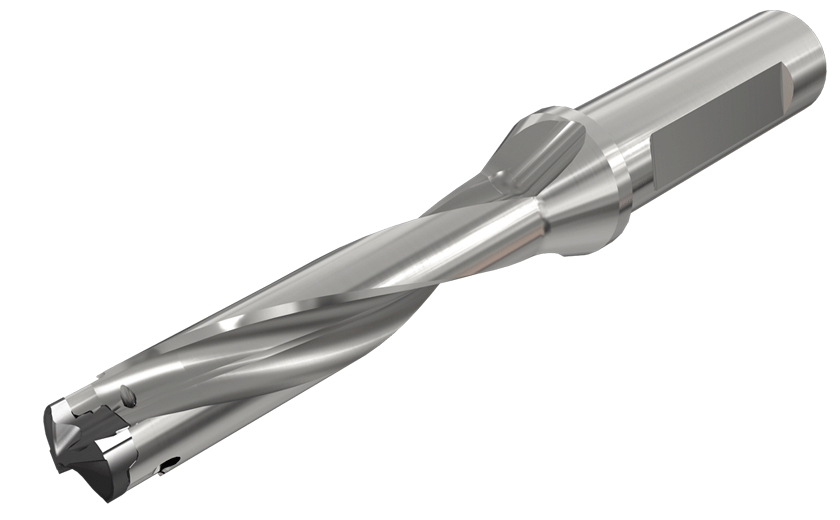

DCM 0709-354-100A-5D-Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 5xD

Dostępność: duża ilość

Cena brutto: 1 748,18 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1748.18

Cena netto: 1 421,28 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 363,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3200586

DCM 0709-354-100A-5D

Podstawowe informacje
FamilyName	DCM-5D (.295-1.020)
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3200586
ProductName	DCM 0709-354-100A-5D
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 5xD
FamilyShortDesc	Drill Body with Exchangeable Heads, Internal Coolant Holes and One Flat Shank. Drilling Depth: 5xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3200586
Remarks	Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	Indexable Insert Drills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.9259
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3200586
Body Diameter Reduced (BDRED)	1.26"
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	0.709"
Cutting Diameter Maximum (DCX)	0.744"
Cutting Diameter Minimum (DCN)	0.709"
Decimal Equivalent	0.709"
Flange Diameter (DF)	1.26"
Functional Length (LF)	4.371"
Insert Seat Size Code (SSC)	18.0
Master Insert Identification (MIID)	IDI 180-SG
Overall Length (OAL)	6.47"
Protruding Length (LPR)	4-1/2"
Point Length (PL)	0.129"
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	1.97"
Usable Length (LU)	3.54"
