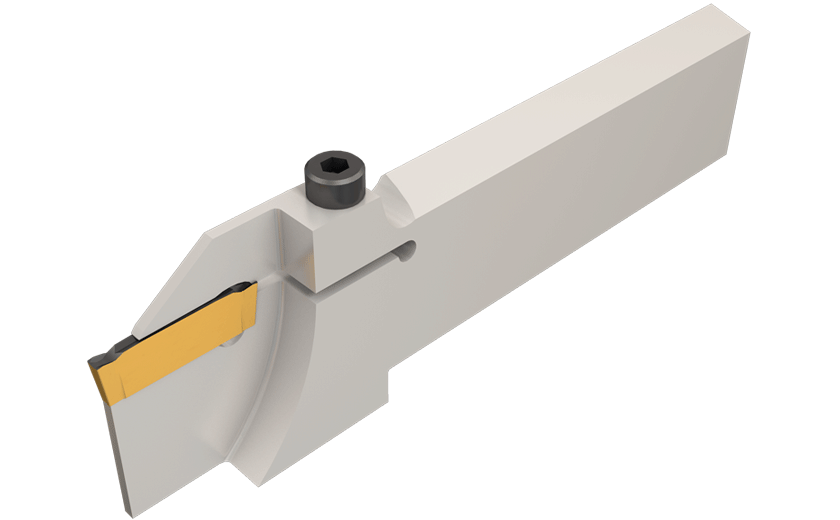

DGFHL 26B-2D50-Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.

Dostępność: duża ilość

Cena brutto: 797,22 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

797.22

Cena netto: 648,15 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 885,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2301566

DGFHL 26B-2D50

Podstawowe informacje
FamilyName	DGFHR/L-B-D..(R/L)
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2301566
ProductName	DGFHL 26B-2D50
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.
FamilyShortDesc	Reinforced Type Blades with Screw Clamping
Link	https://www.Iscar.com/ecat/e.asp?cat=2301566
Remarks	Insert (double sided) limit is CDX=18 mm, If deeper penetration is required the insert should be changed to a single-ended insert DGNM type. DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Parting \|
APP1Name	Ext. Grooving
APP2Name	Parting
ItemRemark	For TRAUB machines, model TNC 30, TNM 28, TNS 26/30/42/112, TNA 300, TNK 260
Tool Type	Blades and adapters for Parting & Grooving
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1620
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2301566
Body Width (WB)	1.6 mm
Body Width_2 (WB_2)	8 mm
Cutting Depth Maximum (CDX)	18 mm
Cutting Direction (HAND)	Left Hand
Cutting Width Maximum (CWX)	2.5 mm
Cutting Width Minimum (CWN)	1.9 mm
Functional Length (LF)	110 mm
Overall Height (OAH)	33.7 mm
Overall Length (OAL)	110 mm
Shank Height (H)	26 mm
Tool Assembly Length (LTA)	50.8 mm
Work Piece Parting Diameter Maximum (CUTDIA)	50 mm
