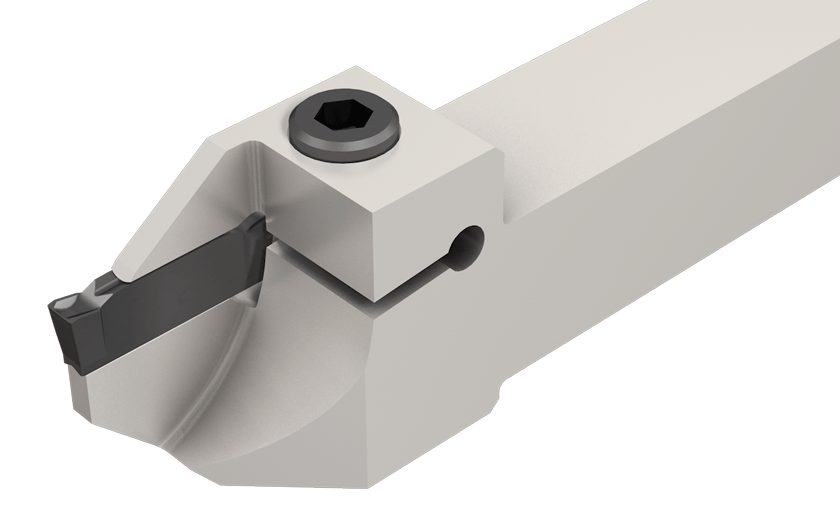

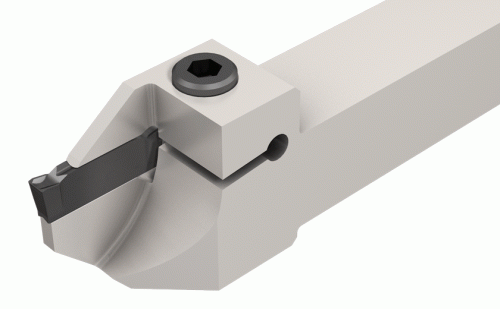

DGTL 10B-2D30-Integral shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.

Dostępność: duża ilość

Cena brutto: 483,75 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

483.75

Cena netto: 393,29 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 537,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2301387

DGTL 10B-2D30

Podstawowe informacje
FamilyName	DGTR/L-B/BC-D
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2301387
ProductName	DGTL 10B-2D30
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Integral shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.
FamilyShortDesc	Integral Shank Reinforced Parting and Grooving Tools Especially for DGNC Type of Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2301387
Remarks	Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Parting \|
APP1Name	Ext. Grooving
APP2Name	Parting
ItemRemark
Tool Type	Parting & Grooving Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1570
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2301387
Body Width (WB)	1.6 mm
Cutting Depth Maximum (CDX)	15 mm
Cutting Direction (HAND)	Left Hand
Cutting Width Maximum (CWX)	2.5 mm
Cutting Width Minimum (CWN)	1.9 mm
Head Length (LH)	29.6 mm
Overall Length (OAL)	140 mm
Shank Height (H)	10 mm
Shank Width (B)	10 mm
Tool Assembly Length (LTA)	40.4 mm
