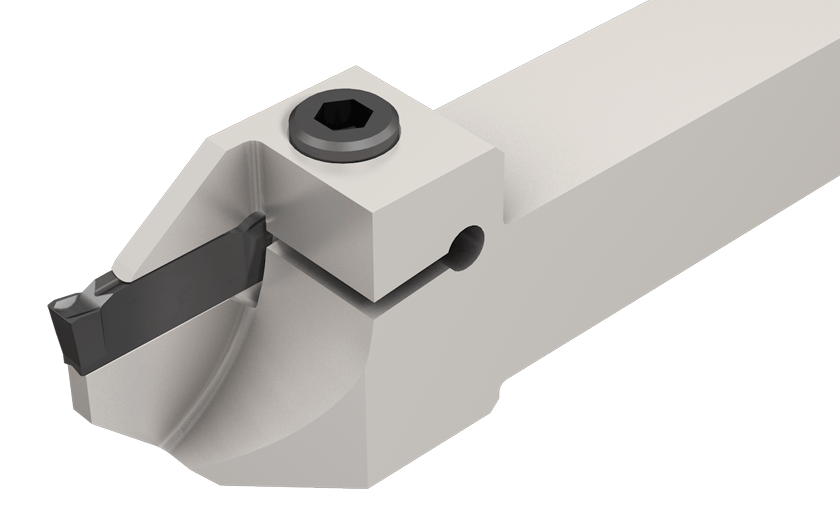

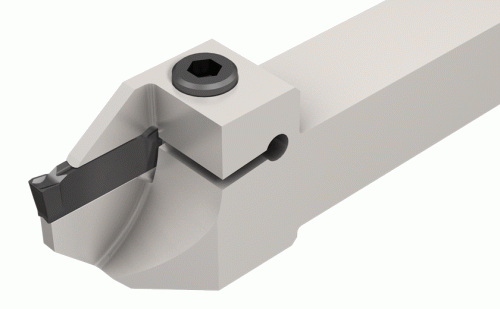

DGTR 19BC-3D40-Integral shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.

Dostępność: duża ilość

Cena brutto: 708,21 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

708.21

Cena netto: 575,78 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 786,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2301935

DGTR 19BC-3D40

Podstawowe informacje
FamilyName	DGTR/L-B/BC-D
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC2301935
ProductName	DGTR 19BC-3D40
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Integral shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.
FamilyShortDesc	Integral Shank Reinforced Parting and Grooving Tools Especially for DGNC Type of Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2301935
Remarks	Important: 1.4 mm (.055) width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm (.039) inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Parting \|
APP1Name	Ext. Grooving
APP2Name	Parting
ItemRemark	Tools for inserts with coolant holes for high temperature alloys and stainless steel
Tool Type	Parting & Grooving Tools
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.8752
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2301935
Body Width (WB)	0.094"
Cutting Depth Maximum (CDX)	0.787"
Cutting Direction (HAND)	Right Hand
Cutting Width Maximum (CWX)	1/8"
Cutting Width Minimum (CWN)	0.118"
Head Length (LH)	1.4"
Overall Length (OAL)	5-1/2"
Shank Height (H)	3/4"
Shank Width (B)	3/4"
Tool Assembly Length (LTA)	1.83"
