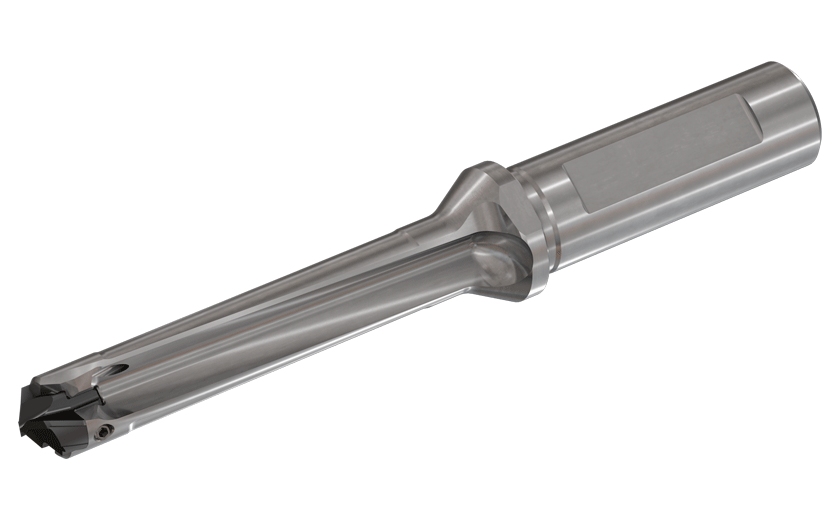

DLN 145-044-16A-3D-Exchangeable head drills with screw lock system for interrupted drilling applications

Dostępność: duża ilość

Cena brutto: 1 710,76 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1710.76

Cena netto: 1 390,86 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 337,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3452820

DLN 145-044-16A-3D

Podstawowe informacje
FamilyName	DLN A-3D
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3452820
ProductName	DLN 145-044-16A-3D
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Exchangeable head drills with screw lock system for interrupted drilling applications
FamilyShortDesc	Exchangeable Head Drills with Screw Lock System for Interrupted Drilling Applications
Link	https://www.Iscar.com/ecat/e.asp?cat=3452820
Remarks	Do not mount smaller drilling heads other than the specified range of the drill body
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	Indexable Insert Drills
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1380
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3452820
Body Diameter Reduced (BDRED)	20 mm
Connection Diameter Machine Side (DCONMS)	16 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	14.5 mm
Cutting Diameter Maximum (DCX)	14.99 mm
Cutting Diameter Minimum (DCN)	14.5 mm
Decimal Equivalent
Flange Diameter (DF)	20 mm
Insert Seat Size Code (SSC)	14.0
Master Insert Identification (MIID)	ILP 145-2M
Overall Length (OAL)	111.65 mm
Protruding Length (LPR)	63.6 mm
Point Length (PL)	2.55 mm
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	48 mm
Shank Type	Weldon
Usable Length (LU)	46.05 mm
