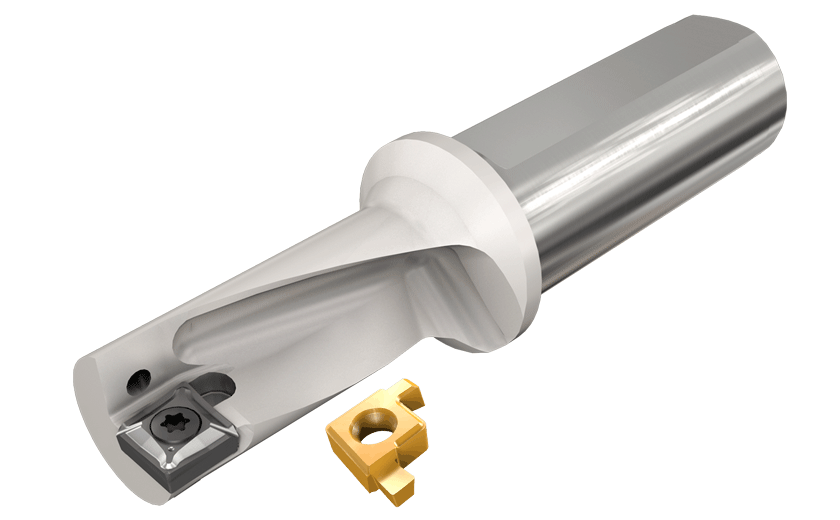

DR-MF-08L-2.25D-12A-04-Multifunction drilling, boring, facing, external turning and internal grooving tools.

Dostępność: duża ilość

Cena brutto: 905,58 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

905.58

Cena netto: 736,24 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 006,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3202461

DR-MF-08L-2.25D-12A-04

Podstawowe informacje
FamilyName	DRG-MF
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3202461
ProductName	DR-MF-08L-2.25D-12A-04
COO	Korea
UOM	EA
UNSPSC	23242106
FamilyDesc	Multifunction drilling, boring, facing, external turning and internal grooving tools.
FamilyShortDesc	Multifunction Drilling, Boring, Facing, External Turning and Internal Grooving Tools
Link	https://www.Iscar.com/ecat/e.asp?cat=3202461
Remarks	In non-rotating applications, hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis The tools feature internal coolant holes.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling Ext Face Int. Turning \| Ext. Grooving \| Ext. Grooving & Turning \| Int. Groove & Turn \| Int. Grooving \|
APP1Name	Drilling Ext Face Int. Turning
APP2Name	Ext. Grooving
APP3Name	Ext. Grooving & Turning
APP4Name	Int. Groove & Turn
APP5Name	Int. Grooving
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0520
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3202461
Connection Diameter Machine Side (DCONMS)	12 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	8 mm
Decimal Equivalent
Length Group	2xD
Master Insert Identification (MIID)	XCMT 04...
Overall Length (OAL)	64.5 mm
Protruding Length (LPR)	22.5 mm
Shank Length (LS)	42 mm
Usable Length (LU)	18 mm
