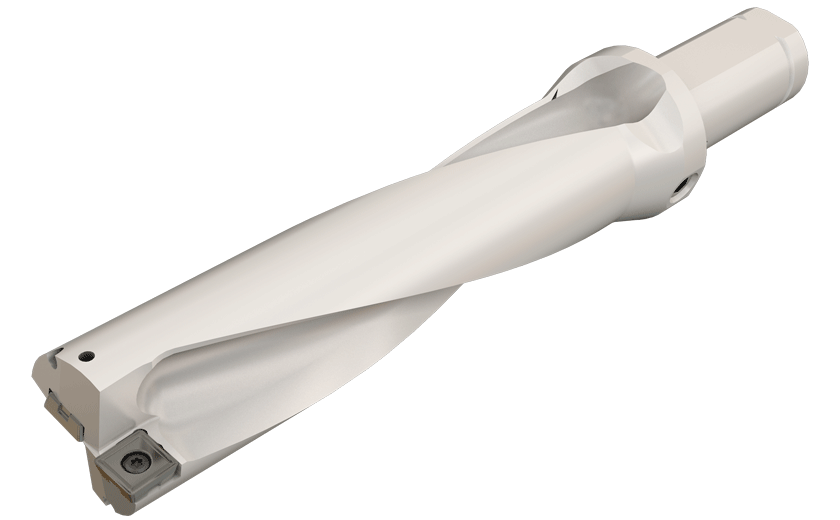

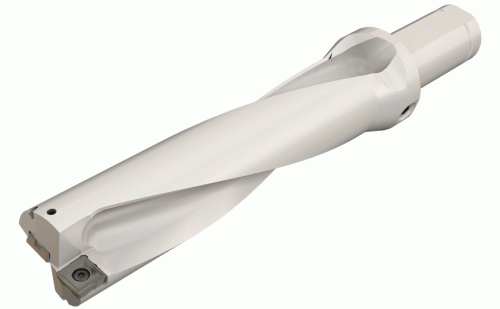

DR0500-2000-063-04-4D-N-DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.

Dostępność: duża ilość

Cena brutto: 1 575,09 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1575.09

Cena netto: 1 280,56 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 750,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3202563

DR0500-2000-063-04-4D-N

Podstawowe informacje
FamilyName	DR-4D-N
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3202563
ProductName	DR0500-2000-063-04-4D-N
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
FamilyShortDesc	Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3202563
Remarks	Hole tolerance D+.014/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages..
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	indexable head drills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.4299
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3202563
Connection Diameter Machine Side (DCONMS)	5/8"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	1/2"
Cutting Diameter Maximum (DCX)	0.511"
Decimal Equivalent	0.5"
Flange Diameter (DF)	0.984"
Functional Length (LF)	2.735"
Master Insert Identification (MIID)	AOMT 04
Overall Length (OAL)	5-3/4"
Protruding Length (LPR)	2-3/4"
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	3"
Usable Length (LU)	2"
