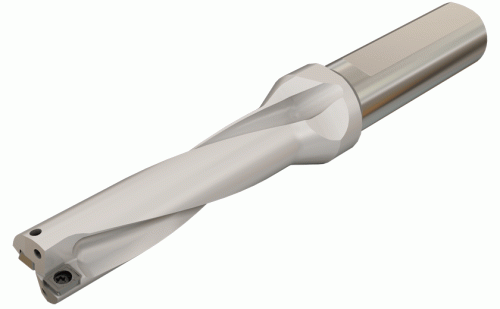

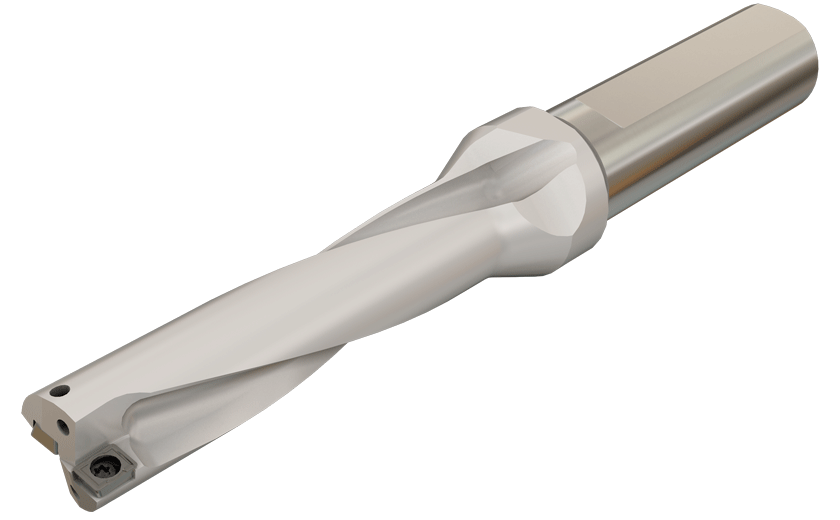

DR058-232-40-16-4D-N-DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.

Dostępność: duża ilość

Cena brutto: 2 956,68 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2956.68

Cena netto: 2 403,80 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 285,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3201490

DR058-232-40-16-4D-N

Podstawowe informacje
FamilyName	DR-4D-N
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3201490
ProductName	DR058-232-40-16-4D-N
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
FamilyShortDesc	Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3201490
Remarks	Hole tolerance D+0.35/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	indexable head drills
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	3.6790
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3201490
Connection Diameter Machine Side (DCONMS)	40 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	58 mm
Cutting Diameter Maximum (DCX)	58 mm
Decimal Equivalent
Flange Diameter (DF)	60 mm
Functional Length (LF)	265.26 mm
Master Insert Identification (MIID)	SOMT 160512-DT
Overall Length (OAL)	335 mm
Protruding Length (LPR)	267 mm
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	68 mm
Usable Length (LU)	232 mm
