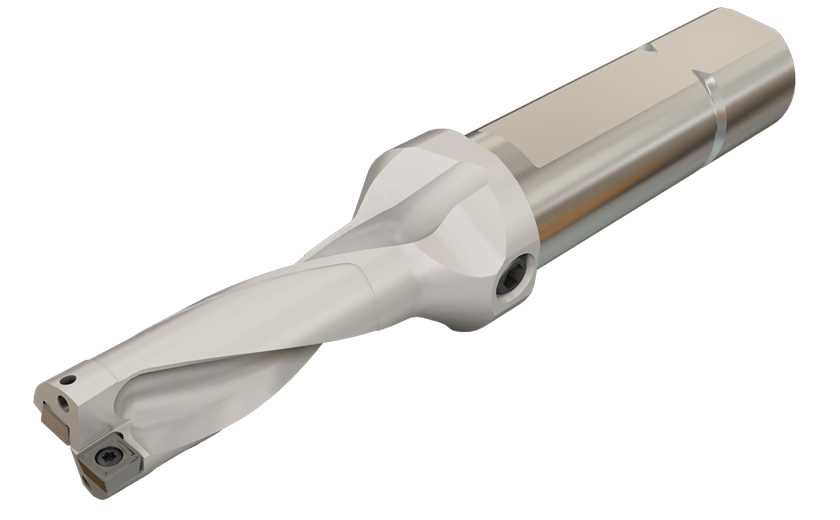

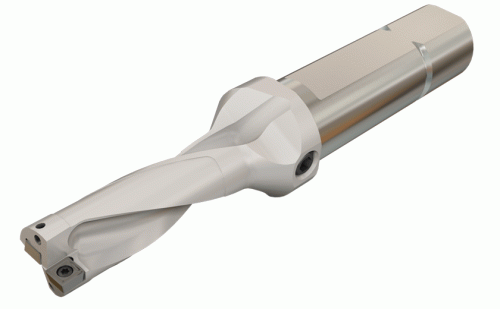

DR0734-2203-100-06-3D-N-DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.

Dostępność: duża ilość

Cena brutto: 1 474,47 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1474.47

Cena netto: 1 198,76 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 638,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3201363

DR0734-2203-100-06-3D-N

Podstawowe informacje
FamilyName	DR-3D-N
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3201363
ProductName	DR0734-2203-100-06-3D-N
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.
FamilyShortDesc	Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3201363
Remarks	Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages..
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	indexable head drills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.0009
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3201363
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	0.734"
Cutting Diameter Maximum (DCX)	0.811"
Decimal Equivalent	0.734"
Flange Diameter (DF)	1.26"
Functional Length (LF)	3.048"
Master Insert Identification (MIID)	SOMX 060304-DT
Overall Length (OAL)	6.07"
Protruding Length (LPR)	3.07"
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	3"
Usable Length (LU)	2.2"
