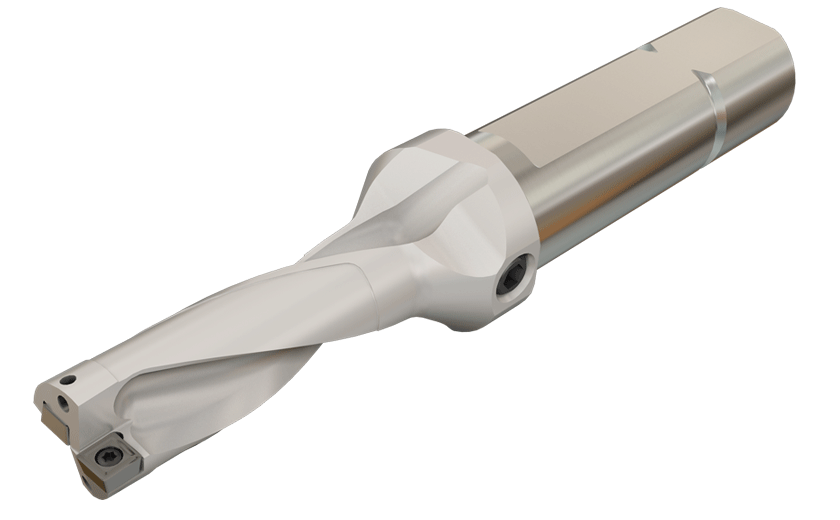

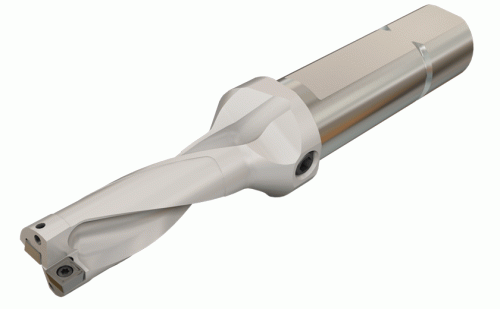

DR0875-2625-100-07-3D-N-DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.

Dostępność: duża ilość

Cena brutto: 1 536,39 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1536.39

Cena netto: 1 249,10 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 707,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3201399

DR0875-2625-100-07-3D-N

Podstawowe informacje
FamilyName	DR-3D-N
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3201399
ProductName	DR0875-2625-100-07-3D-N
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.
FamilyShortDesc	Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3201399
Remarks	Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages..
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	indexable head drills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.1089
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3201399
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	7/8"
Cutting Diameter Maximum (DCX)	0.988"
Decimal Equivalent	0.875"
Flange Diameter (DF)	1.26"
Functional Length (LF)	3.464"
Master Insert Identification (MIID)	SOMX 070305-DT
Overall Length (OAL)	6.49"
Protruding Length (LPR)	3.49"
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	3"
Usable Length (LU)	2.63"
