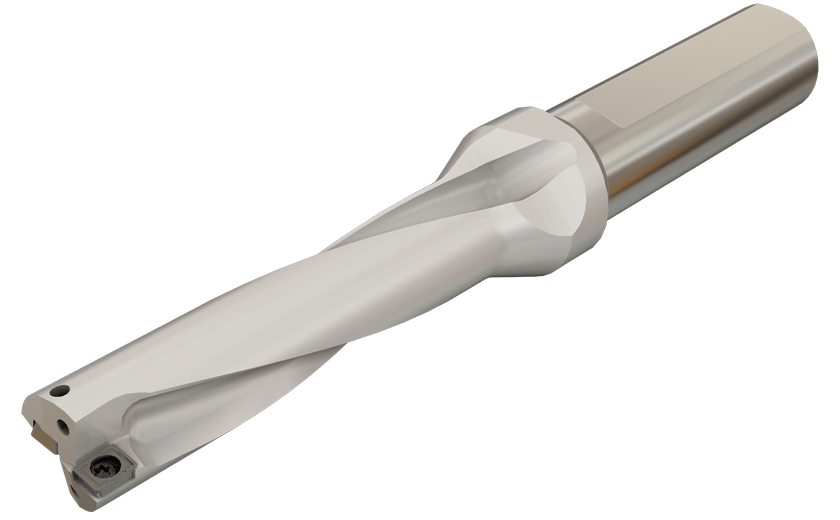

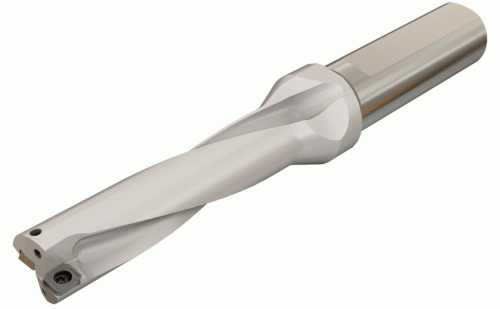

DR125-050-16-04-4D-N-DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.

Dostępność: duża ilość

Cena brutto: 1 575,09 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1575.09

Cena netto: 1 280,56 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 750,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3202350

DR125-050-16-04-4D-N

Podstawowe informacje
FamilyName	DR-4D-N
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3202350
ProductName	DR125-050-16-04-4D-N
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
FamilyShortDesc	Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3202350
Remarks	Hole tolerance D+0.35/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	indexable head drills
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1420
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3202350
Connection Diameter Machine Side (DCONMS)	16 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	12.5 mm
Cutting Diameter Maximum (DCX)	12.9 mm
Decimal Equivalent
Flange Diameter (DF)	20 mm
Functional Length (LF)	67.62 mm
Master Insert Identification (MIID)	AOMT 040204-90DT
Overall Length (OAL)	116 mm
Protruding Length (LPR)	68 mm
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	48 mm
Usable Length (LU)	50 mm
