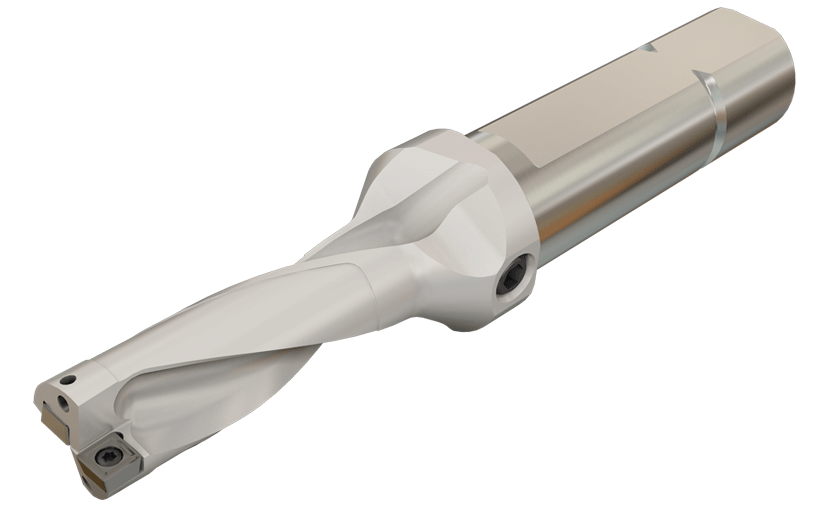

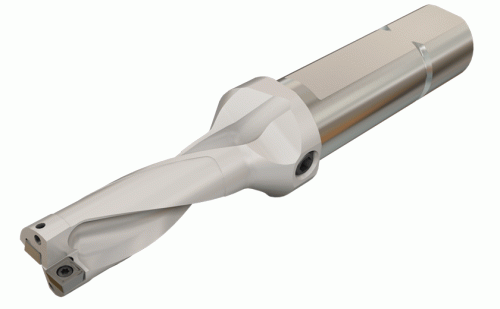

DR1250-3750-125-09-3D-N-DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.

Dostępność: duża ilość

Cena brutto: 1 888,56 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1888.56

Cena netto: 1 535,41 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 098,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3201846

DR1250-3750-125-09-3D-N

Podstawowe informacje
FamilyName	DR-3D-N
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3201846
ProductName	DR1250-3750-125-09-3D-N
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.
FamilyShortDesc	Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3201846
Remarks	Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages..
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	indexable head drills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	2.1870
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3201846
Connection Diameter Machine Side (DCONMS)	1-1/4"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	1-1/4"
Cutting Diameter Maximum (DCX)	1.28"
Decimal Equivalent	1.25"
Flange Diameter (DF)	1.654"
Functional Length (LF)	5.013"
Master Insert Identification (MIID)	SOMT 09T306-DT
Overall Length (OAL)	8.05"
Protruding Length (LPR)	5.05"
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	3"
Usable Length (LU)	3-3/4"
