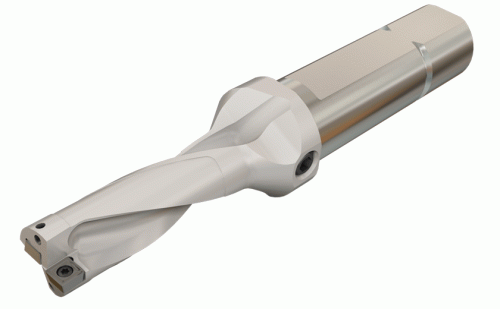

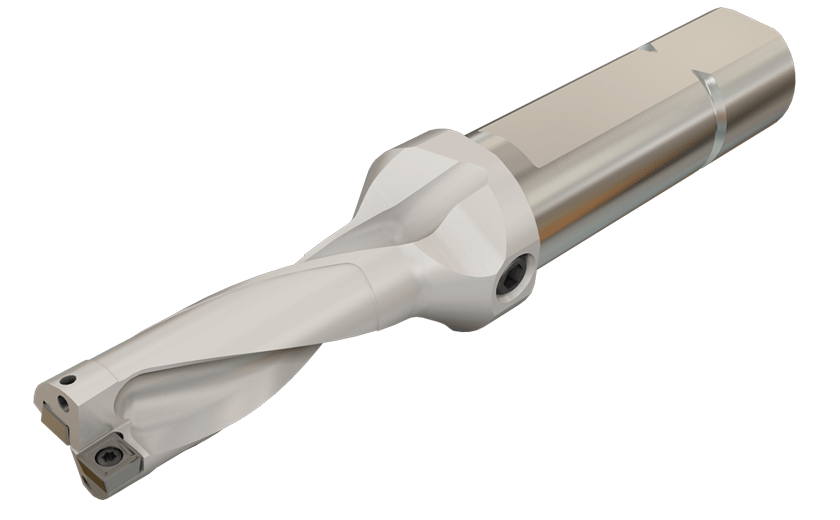

DR1375-4125-150-12-3D-N-DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.

Dostępność: duża ilość

Cena brutto: 1 923,39 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1923.39

Cena netto: 1 563,73 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 137,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3201849

DR1375-4125-150-12-3D-N

Podstawowe informacje
FamilyName	DR-3D-N
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3201849
ProductName	DR1375-4125-150-12-3D-N
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.
FamilyShortDesc	Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3201849
Remarks	Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages..
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Tool Type	indexable head drills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	3.0997
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3201849
Connection Diameter Machine Side (DCONMS)	1-1/2"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	1-3/8"
Cutting Diameter Maximum (DCX)	1.572"
Decimal Equivalent	1.375"
Flange Diameter (DF)	1.969"
Functional Length (LF)	5.379"
Master Insert Identification (MIID)	SOMT 120408-DT
Overall Length (OAL)	8.42"
Protruding Length (LPR)	5.42"
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	3"
Usable Length (LU)	4.13"
