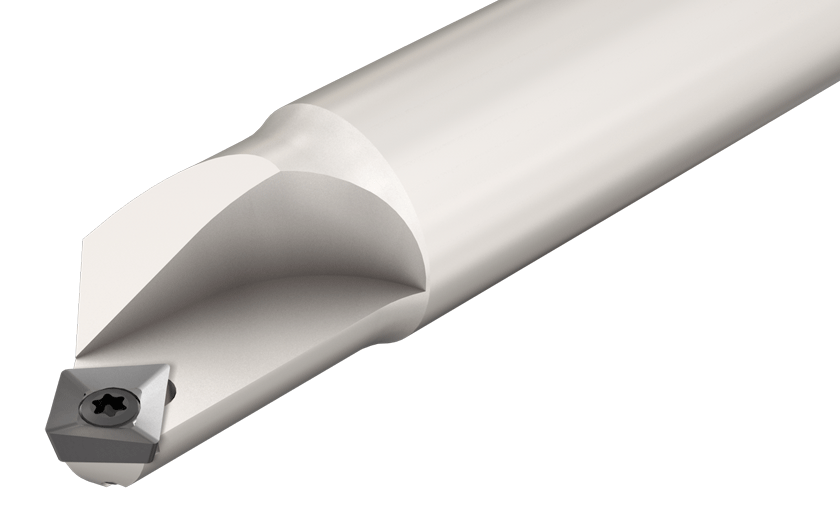

E45X D .25-W .50-06-45° chamfering endmills carrying X/Q/SOMT 06 inserts.

Dostępność: duża ilość

Cena brutto: 959,76 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

959.76

Cena netto: 780,29 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 066,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3100503

E45X D .25-W .50-06

Podstawowe informacje
FamilyName	E45X
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3100503
ProductName	E45X D .25-W .50-06
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	45° chamfering endmills carrying X/Q/SOMT 06 inserts.
FamilyShortDesc	45° Chamfering Endmills Carrying X/Q/SOMT 06 Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3100503
Remarks	For adaptation, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Chamfering & Bottom Deburring \| Countersinking \| Slanted Shoulder & Chamfer \|
APP1Name	Chamfering & Bottom Deburring
APP2Name	Countersinking
APP3Name	Slanted Shoulder & Chamfer
ItemRemark
Tool Type	Chamfering endmills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.2557
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3100503
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1/2"
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	1/4"
Cutting Diameter (DC/DCX)	1/4"
Cutting Diameter Maximum (DCX)	0.57"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	1
Depth of Cut Maximum (APMX)	0.15"
Functional Length (LF)	1.859"
Head Length (LH)	0.8"
Master Insert Identification (MIID)	SOMT 060204-HQ
Overall Length (OAL)	2-3/4"
Ramping Angle Maximum (RMPX)	0 Degrees
Shank Type	Weldon
Tool Cutting Edge Angle (KAPR)	45 Degrees
