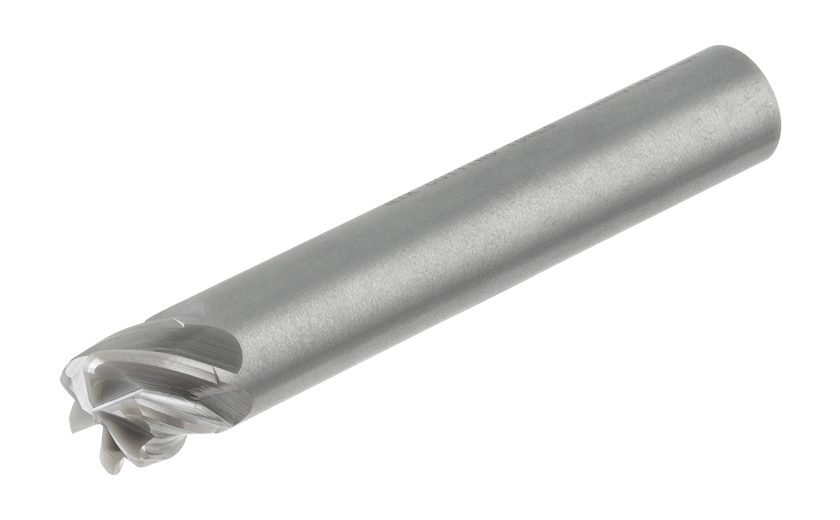

EC-E4 12-09/2024R1.5N70CE IS45-Solid ceramic endmills with 4 flutes for machining nickel-based alloy materials

Dostępność: duża ilość

Cena brutto: 2 160,96 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2160.96

Cena netto: 1 756,88 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 505,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3448186

EC-E4 12-09/2024R1.5N70CE IS45

Podstawowe informacje
FamilyName	EC-E4 (CER)
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3448186
ProductName	EC-E4 12-09/2024R1.5N70CE IS45
COO	Japan
UOM	EA
UNSPSC	23241614
FamilyDesc	Solid ceramic endmills with 4 flutes for machining nickel-based alloy materials
FamilyShortDesc	Solid Ceramic Endmills with 4 Flutes for Machining Nickel-Based Alloy Materials
Link	https://www.Iscar.com/ecat/e.asp?cat=3448186
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Plunging & Recessing \| Rampdown \| Shouldering \| Slotting \|
APP1Name	Plunging & Recessing
APP2Name	Rampdown
APP3Name	Shouldering
APP4Name	Slotting
ItemRemark
Coating
Cutting Edge Material	Ceramic
Tool Type	Solid carbide center cutting endmills 90°
Point Shape
Measurement Type	Metric
Applicable Material	\| Cast Iron \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0330
Style
MSDS	07999
LocalField1	2
Body Material	Ceramic
ManufacturerNo	3448186
Grade	IS45
Body Half Taper Angle (BHTA)	15 Degrees
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	12 mm
Coolant Supply Property (CSP)	External
Corner Radius (RE)	1.5 mm
Cutting Diameter (DC)	12 mm
Cutting Diameter Tolerance	e8
Decimal Equivalent
Depth of Cut Maximum (APMX)	9 mm
End Shape	Corner Radius
Flute Helix Angle (FHA)	35 Degrees
Flute Count (NOF)	4
Neck Diameter (DN)	11.6 mm
Overall Length (OAL)	70 mm
Ramping Angle Maximum (RMPX)	1.5 Degrees
Shank Diameter Tolerance (TCDMM)	h6
Shank Type	Round
Usable Length (LU)	24 mm
