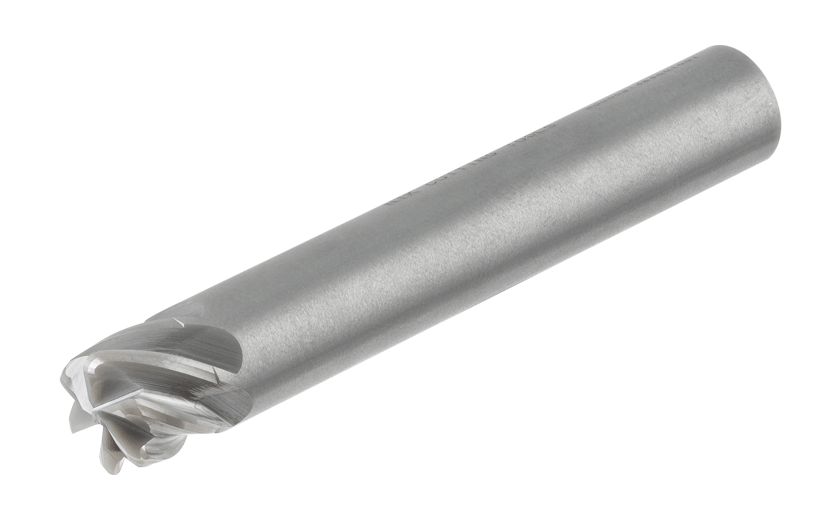

EC-E6 08-060-R1N60CE IS45-Solid ceramic endmills with 6 flutes for machining nickel-based alloy materials

Dostępność: duża ilość

Cena brutto: 975,24 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

975.24

Cena netto: 792,88 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 083,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3448183

EC-E6 08-060-R1N60CE IS45

Podstawowe informacje
FamilyName	EC-E6 (CER)
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3448183
ProductName	EC-E6 08-060-R1N60CE IS45
COO	Japan
UOM	EA
UNSPSC	23241614
FamilyDesc	Solid ceramic endmills with 6 flutes for machining nickel-based alloy materials
FamilyShortDesc	Solid Ceramic Endmills with 6 Flutes for Machining Nickel-Based Alloy Materials
Link	https://www.Iscar.com/ecat/e.asp?cat=3448183
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Plunging & Recessing \| Rampdown \| Shouldering \| Slotting \|
APP1Name	Plunging & Recessing
APP2Name	Rampdown
APP3Name	Shouldering
APP4Name	Slotting
ItemRemark
Coating
Cutting Edge Material	Ceramic
Tool Type	Solid carbide non center cutting endmills 90°
Point Shape
Measurement Type	Metric
Applicable Material	\| Cast Iron \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0180
Style
MSDS	07999
LocalField1	2
Body Material	Ceramic
ManufacturerNo	3448183
Grade	IS45
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	8 mm
Coolant Supply Property (CSP)	External
Corner Radius (RE)	1 mm
Cutting Diameter (DC)	8 mm
Cutting Diameter Tolerance	h6
Decimal Equivalent
Depth of Cut Maximum (APMX)	6 mm
End Shape	Corner Radius
Flute Helix Angle (FHA)	40 Degrees
Flute Count (NOF)	6
Overall Length (OAL)	60 mm
Ramping Angle Maximum (RMPX)	1.5 Degrees
Shank Diameter Tolerance (TCDMM)	h6
Shank Type	Round
Usable Length (LU)	6 mm
