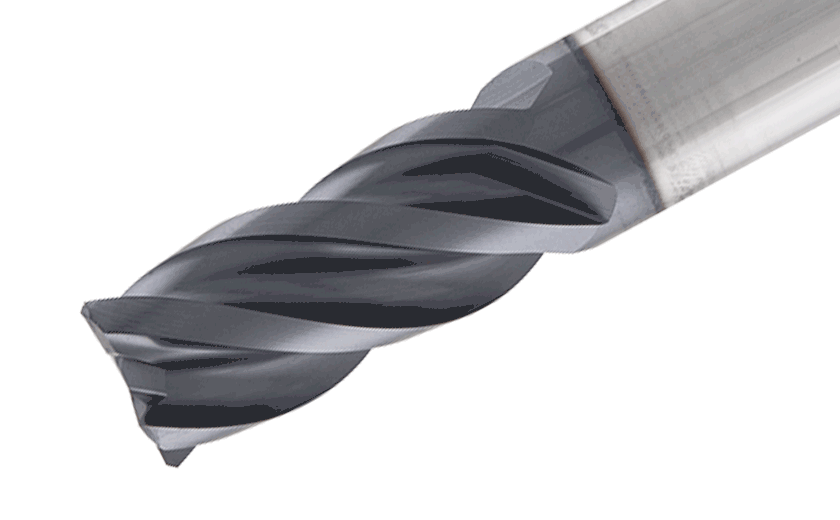

EC-H4M 08-16C08CFR1.5-E63 IC900-4 flute endmills with different helix (35° & 37°) and variable pitch for chatter dampening. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD.
Dostępność:
duża ilość
Cena brutto:
425,58 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
346,00 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
396,89 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3419787
Opis
EC-H4M 08-16C08CFR1.5-E63 IC900
| Podstawowe informacje | |
|---|---|
| FamilyName | EC-H4M-CF-E |
| ToolType | Solid |
| Unit | M |
| PackSize | 1 |
| product_code | ISC3419787 |
| ProductName | EC-H4M 08-16C08CFR1.5-E63 IC900 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | 4 flute endmills with different helix (35° & 37°) and variable pitch for chatter dampening. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD. |
| FamilyShortDesc | 4 Flute Endmills with Different Helix and Variable Pitch for Chatter Dampening |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3419787 |
| Remarks | |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| APP1Name | Drill Mill |
| APP2Name | Helical Interpolation |
| APP3Name | Plunging & Recessing |
| APP4Name | Rampdown |
| APP5Name | Shouldering |
| APP6Name | Slotting |
| ItemRemark | |
| Coating | AlTiN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.0470 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 3419787 |
| Grade | IC900 |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 1.5 mm |
| Cutting Diameter (DC) | 8 mm |
| Cutting Diameter Tolerance | e8 |
| Decimal Equivalent | |
| Depth of Cut Maximum (APMX) | 16 mm |
| End Shape | Corner Radius |
| Flute Helix Angle (FHA) | 38 Degrees |
| Flute Count (NOF) | 4 |
| Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Overall Length (OAL) | 63 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
| Usable Length (LU) | 16 mm |
