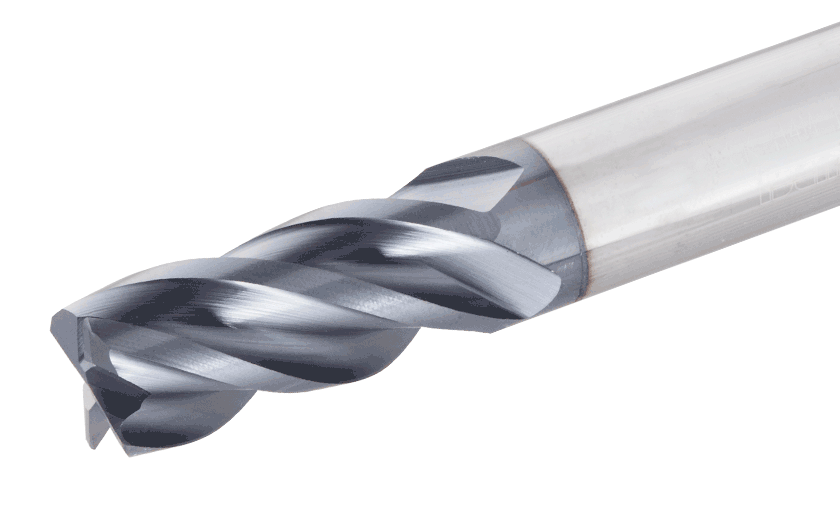

ECKI-H4R250-500C015CF-2.5 IC900-4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter dampening with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD.
Dostępność:
duża ilość
Cena brutto:
282,90 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
230,00 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
314,33 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3337609
Opis
ECKI-H4R250-500C015CF-2.5 IC900
| Podstawowe informacje | |
|---|---|
| FamilyName | ECKI-H4R-CF |
| ToolType | Solid |
| Unit | I |
| PackSize | 1 |
| product_code | ISC3337609 |
| ProductName | ECKI-H4R250-500C015CF-2.5 IC900 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | 4 flute endmills with different helix (35° & 37°), chamfered cutting edges and variable pitch for chatter dampening with assorted radii. Used for high titanium removal rates. Full slot milling-up to 2XD. |
| FamilyShortDesc | 4 Flute Endmills with Different Helix, Chamfered Cutting Edges and Variable Pitch, for Chatter Dampening on Titanium |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3337609 |
| Remarks | |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| APP1Name | Helical Interpolation |
| APP2Name | Rampdown |
| APP3Name | Shouldering |
| APP4Name | Slotting |
| ItemRemark | |
| Coating | AlTiN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Point Shape | |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.0639 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 3337609 |
| Grade | IC900 |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 1/4" |
| Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 0.015" |
| Cutting Diameter (DC) | 1/4" |
| Decimal Equivalent | 0.25" |
| Depth of Cut Maximum (APMX) | 1/2" |
| End Shape | Corner Radius |
| Flute Helix Angle (FHA) | 36 Degrees |
| Flute Count (NOF) | 4 |
| Maximum Feed per Tooth (fz(max)) | 0.0024 "/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.0016 "/tooth |
| Overall Length (OAL) | 2-1/2" |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Shank Type | Round |
| Usable Length (LU) | 1/2" |
