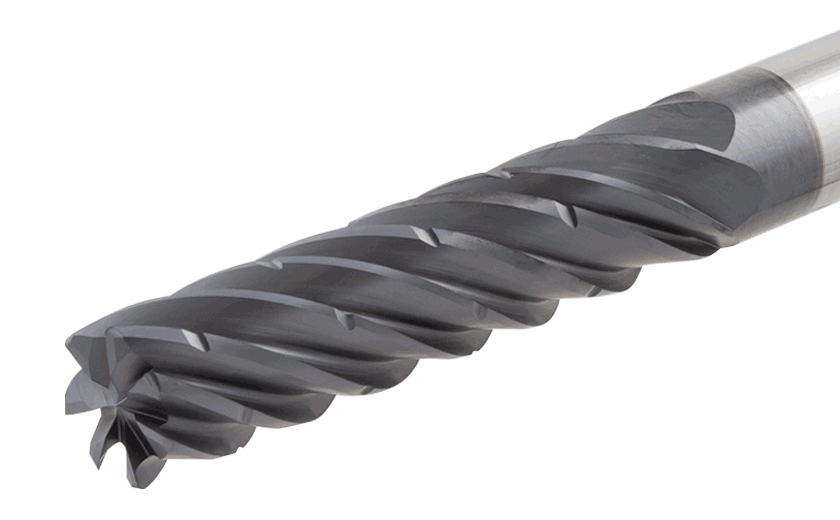

ECP-H7 12-48C12CF-110 IC902-CHATTERFREE 7 flute solid carbide roughing endmills with 35-37° different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel and high temperature alloys.
Dostępność:
duża ilość
Cena brutto:
1 419,89 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 154,38 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 324,40 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3332006
Opis
ECP-H7 12-48C12CF-110 IC902
| Podstawowe informacje | |
|---|---|
| FamilyName | ECP-H7-CF |
| ToolType | Solid |
| Unit | M |
| PackSize | 1 |
| product_code | ISC3332006 |
| ProductName | ECP-H7 12-48C12CF-110 IC902 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | CHATTERFREE 7 flute solid carbide roughing endmills with 35-37° different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel and high temperature alloys. |
| FamilyShortDesc | 7 Flute Solid Carbide Endmills with Different Helix, Variable Pitch and Chip Splitting Cutting Edges |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3332006 |
| Remarks | |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Counter Boring | Plunging & Recessing | Shouldering | |
| APP1Name | Counter Boring |
| APP2Name | Plunging & Recessing |
| APP3Name | Shouldering |
| ItemRemark | |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.1700 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 3332006 |
| Grade | IC902 |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Coolant Supply Property (CSP) | External |
| Corner Chamfer Width (CHW) | 0.3 mm |
| Cutting Diameter (DC) | 12 mm |
| Cutting Diameter Tolerance | e9 |
| Decimal Equivalent | |
| Depth of Cut Maximum (APMX) | 48 mm |
| End Shape | Chamfer |
| Flute Helix Angle (FHA) | 36 Degrees |
| Flute Count (NOF) | 7 |
| Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Overall Length (OAL) | 110 mm |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
| Usable Length (LU) | 48 mm |
