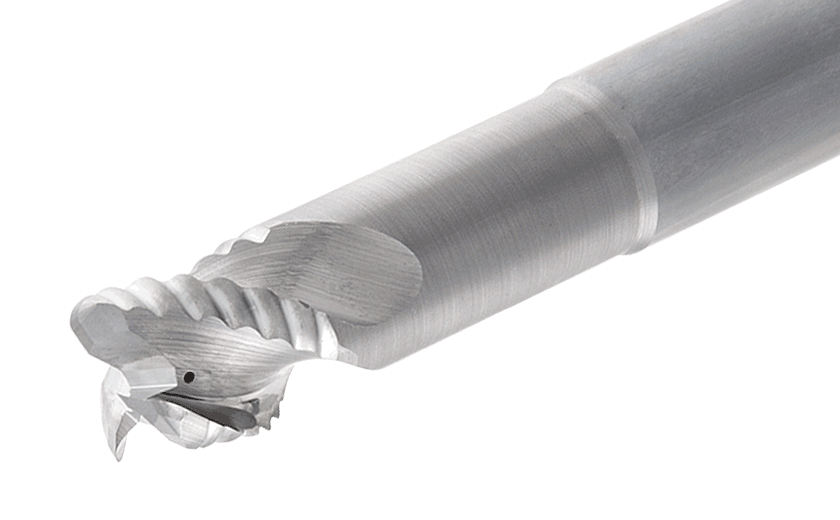

ECR-B3 10-12/41C10R20A83C IC08-3 flute, 45° helix solid carbide roughing endmills with coolant channels directed to each cutting edge. Used for high stock removal rates on aluminum.
Dostępność:
duża ilość
Cena brutto:
1 168,74 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
950,20 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 298,60 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
2618636
Opis
ECR-B3 10-12/41C10R20A83C IC08
| Podstawowe informacje | |
|---|---|
| FamilyName | ECR-B3-R-C |
| ToolType | Solid |
| Unit | M |
| PackSize | 1 |
| product_code | ISC2618636 |
| ProductName | ECR-B3 10-12/41C10R20A83C IC08 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | 3 flute, 45° helix solid carbide roughing endmills with coolant channels directed to each cutting edge. Used for high stock removal rates on aluminum. |
| FamilyShortDesc | 3 Flute, 45° Helix Solid Carbide Roughing Endmills with 3xD Relieved Necks and Coolant Channels for Aluminum |
| Link | https://www.Iscar.com/ecat/e.asp?cat=2618636 |
| Remarks | |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| APP1Name | Counter Boring |
| APP2Name | Drill Mill |
| APP3Name | Helical Interpolation |
| APP4Name | Plunging & Recessing |
| APP5Name | Rampdown |
| APP6Name | Shouldering |
| APP7Name | Slotting |
| ItemRemark | |
| Coating | Uncoated |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Standard | |
| Package Weight | 0.0830 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 21 |
| Body Material | Carbide |
| ManufacturerNo | 2618636 |
| Grade | IC08 |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Corner Radius (RE) | 2 mm |
| Cutting Diameter (DC) | 10 mm |
| Cutting Diameter Tolerance | h6 |
| Decimal Equivalent | |
| Depth of Cut Maximum (APMX) | 12 mm |
| End Shape | Corner Radius |
| Flute Helix Angle (FHA) | 45 Degrees |
| Flute Count (NOF) | 3 |
| Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Neck Diameter (DN) | 9.1 mm |
| Overall Length (OAL) | 83 mm |
| Ramping Angle Maximum (RMPX) | 20 Degrees |
| Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
| Usable Length (LU) | 41 mm |
