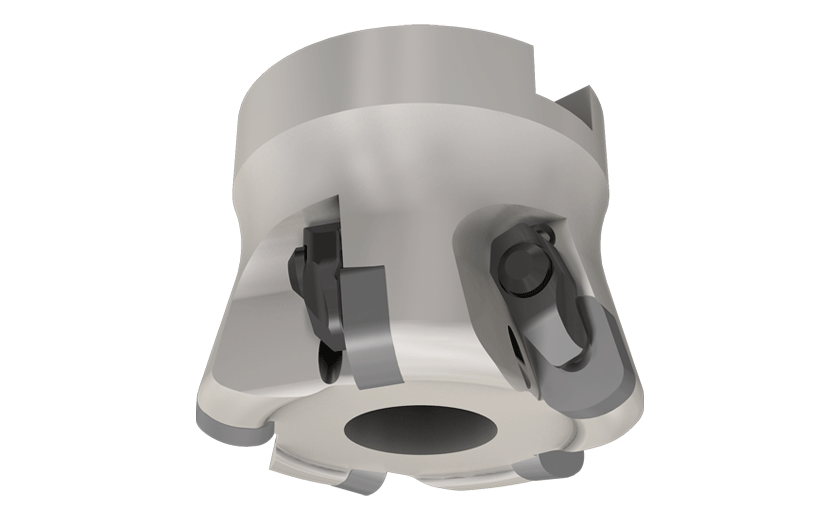

EFN FD50-5-22-09X-Fast feed face mills carrying double-sided Inserts with 4 cutting edges

Dostępność: duża ilość

Cena brutto: 4 753,48 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4753.48

Cena netto: 3 864,62 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 289,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3469822

EFN FD50-5-22-09X

Podstawowe informacje
FamilyName	EFN FD-09
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3469822
ProductName	EFN FD50-5-22-09X
COO	Korea
UOM	EA
UNSPSC	23242106
FamilyDesc	Fast feed face mills carrying double-sided Inserts with 4 cutting edges
FamilyShortDesc	Fast Feed Face Mills Carrying Double-Sided Inserts with 4 Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3469822
Remarks	For machining recommendations click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Fast Feed Milling \| Helical Interpolation \| Plunging & Recessing \| Profiling \| Rampdown \|
APP1Name	Facing
APP2Name	Fast Feed Milling
APP3Name	Helical Interpolation
APP4Name	Plunging & Recessing
APP5Name	Profiling
APP6Name	Rampdown
ItemRemark
Tool Type	Fast Feed Face mill
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.4270
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3469822
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	22 mm
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	39.4 mm
Cutting Diameter (DC/DCX)	50 mm
Cutting Diameter Maximum (DCX)	50 mm
Cutting Item Count (CICT)	5
Depth of Cut Maximum (APMX)	1.5 mm
Hub Diameter (DHUB)	45 mm
Master Insert Identification (MIID)	EFN WDNX 0904-E04
Overall Length (OAL)	40 mm
