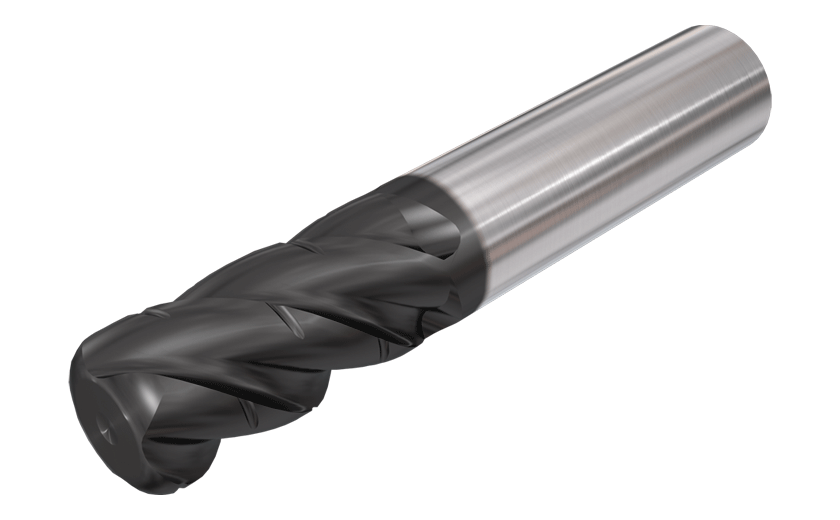

EFPI-E5CF 375-938C375R07 IC903-4, 5 flute 38° helix, solid carbide roughing endmills with chip splitting cutting edges, variable pitch (CHATTERFREE) and large radius front edge for high feed rates (FEEDMILL).
Dostępność:
duża ilość
Cena brutto:
770,13 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
626,12 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
855,70 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3432000
Opis
EFPI-E5CF 375-938C375R07 IC903
| Podstawowe informacje | |
|---|---|
| FamilyName | EFPI-E4,5CF |
| ToolType | Solid |
| Unit | I |
| PackSize | 1 |
| product_code | ISC3432000 |
| ProductName | EFPI-E5CF 375-938C375R07 IC903 |
| COO | Korea |
| UOM | EA |
| UNSPSC | 23241614 |
| FamilyDesc | 4, 5 flute 38° helix, solid carbide roughing endmills with chip splitting cutting edges, variable pitch (CHATTERFREE) and large radius front edge for high feed rates (FEEDMILL). |
| FamilyShortDesc | Solid Carbide Roughing Endmills with Chip Splitting Cutting Edges, Variable Pitch and Large Radius Front Edge |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3432000 |
| Remarks | |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | |
| APP1Name | Drill Mill |
| APP2Name | Helical Interpolation |
| APP3Name | Plunging & Recessing |
| APP4Name | Profiling |
| APP5Name | Rampdown |
| APP6Name | Shouldering |
| APP7Name | Slotting |
| ItemRemark | Cannot be used for plunging application |
| Coating | AlTiN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Point Shape | |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.1507 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 3432000 |
| Grade | IC903 |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 3/8" |
| Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 0.07" |
| Cutting Diameter (DC) | 3/8" |
| Decimal Equivalent | 0.375" |
| Depth of Cut Maximum (APMX) | 0.02" |
| End Shape | Corner Radius |
| Flute Helix Angle (FHA) | 38 Degrees |
| Flute Count (NOF) | 5 |
| Maximum Feed per Tooth (fz(max)) | 0.02 "/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.001 "/tooth |
| Overall Length (OAL) | 3" |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Round |
| Usable Length (LU) | 0.02" |
