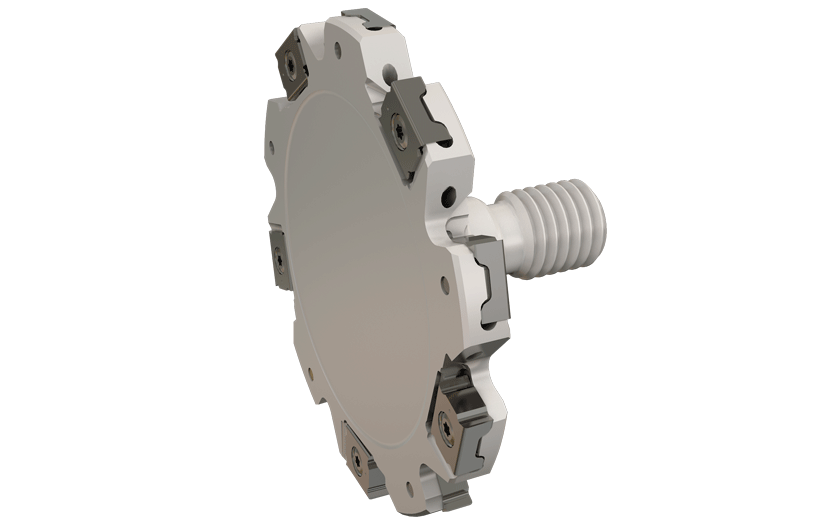

ETS D032-04-LN08-M08-MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges.

Dostępność: duża ilość

Cena brutto: 2 182,68 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2182.68

Cena netto: 1 774,54 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 425,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3104215

ETS D032-04-LN08-M08

Podstawowe informacje
FamilyName	ETS-LN08-M
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3104215
ProductName	ETS D032-04-LN08-M08
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	MINI-TANGSLOT, Grooving and slitting cutters with FLEXFIT threaded adaptation, carrying tangentially clamped inserts with 4 cutting edges.
FamilyShortDesc	Grooving and Slitting Cutters with FLEXFIT Threaded Adaptation
Link	https://www.Iscar.com/ecat/e.asp?cat=3104215
Remarks	For adaptation, click on More Info When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Side Slotting
APP3Name	Slitting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0770
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3104215
Connection Code Machine Side (CCMS)	FLEXFIT
Connection Diameter Machine Side (DCONMS)	13 mm
Cutting Diameter (DC)	32 mm
Cutting Item Count (CICT)	4
Flute Count (NOF)	4
Master Insert Identification (MIID)	LNET 082604-TN-N
Overall Length (OAL)	30.5 mm
Peripheral Effective Cutting Edge Count (ZEFP)	2
