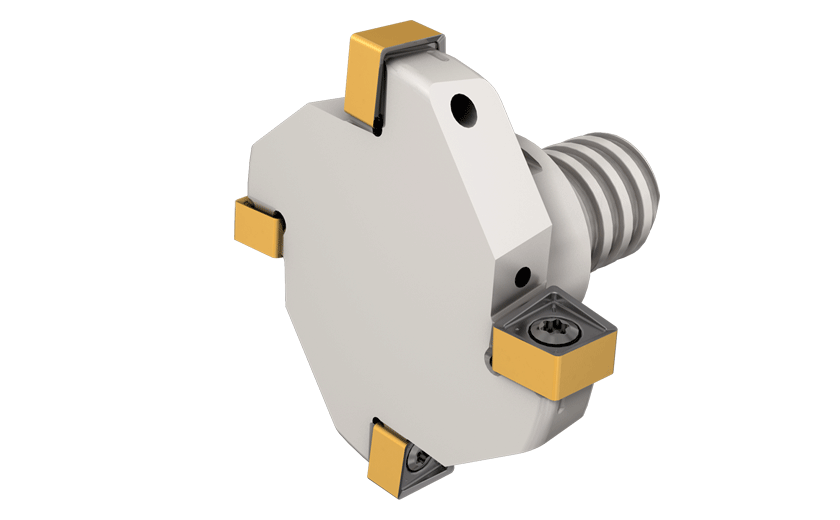

ETS D050-07-XN06-MMT15-T-SLOT endmills with a MULTI-MASTER threaded connection, mount XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges

Dostępność: duża ilość

Cena brutto: 4 245,24 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4245.24

Cena netto: 3 451,41 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 936,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3420966

ETS D050-07-XN06-MMT15

Podstawowe informacje
FamilyName	ETS-XN06-MM
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3420966
ProductName	ETS D050-07-XN06-MMT15
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	T-SLOT endmills with a MULTI-MASTER threaded connection, mount XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges
FamilyShortDesc	T-SLOT Endmills with a MULTI-MASTER Threaded Connection, Mount XNMU 0603 Square Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3420966
Remarks	For adaptation, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1930
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3420966
Connection Diameter Machine Side (DCONMS)	23.9 mm
Cutting Diameter (DC)	49.8 mm
Cutting Depth Maximum (CDX)	12.5 mm
Cutting Item Count (CICT)	6
Cutting Width (CW)	7 mm
Drive Size (DRVS)	20 mm
Functional Length (LF)	19 mm
Master Insert Identification (MIID)	XNMU 060304-PNTN
Overall Length (OAL)	36 mm
Peripheral Effective Cutting Edge Count (ZEFP)	6
