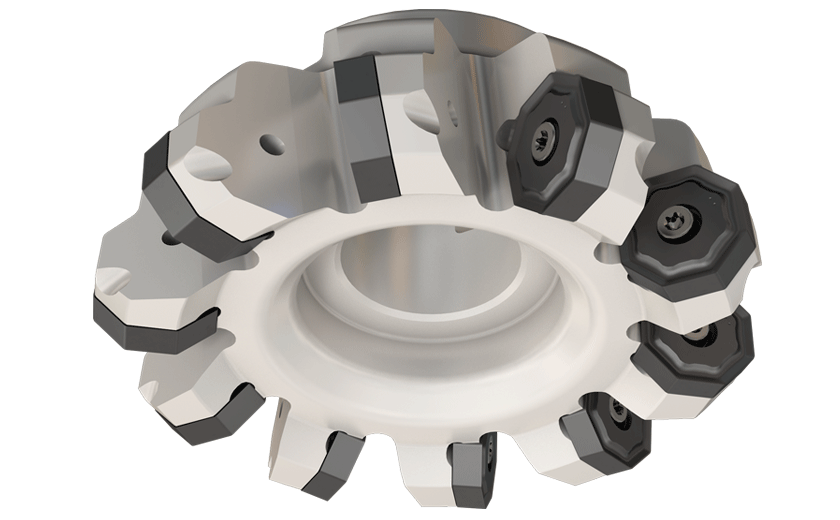

F45NM D10.0-14-2.50-R08-Screw lock, 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed.

Dostępność: duża ilość

Cena brutto: 8 939,70 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

8939.70

Cena netto: 7 268,05 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 9 933,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3104839

F45NM D10.0-14-2.50-R08

Podstawowe informacje
FamilyName	F45NM
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3104839
ProductName	F45NM D10.0-14-2.50-R08
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Screw lock, 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed.
FamilyShortDesc	45° Face Mills Carrying Octagonal ONHU/MU 0806... Inserts with 16 Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3104839
Remarks	Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Slanted Shoulder & Chamfer \|
APP1Name	Facing
APP2Name	Slanted Shoulder & Chamfer
ItemRemark
Tool Type	45° Facemills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	20.7697
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3104839
Arbor Style	C
Connection Diameter Machine Side (DCONMS)	2-1/2"
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	10"
Cutting Diameter (DC/DCX)	10.49"
Cutting Diameter Maximum (DCX)	10.49"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	14
Depth of Cut Maximum (APMX)	0.22"
Hub Diameter (DHUB)	5.39"
Master Insert Identification (MIID)	ONHU 080608-TN
Overall Length (OAL)	2-1/2"
Tool Cutting Edge Angle (KAPR)	44.3 Degrees
