» F45WG D4.0-14-1.5-FX-R08-Wedge lock 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed.

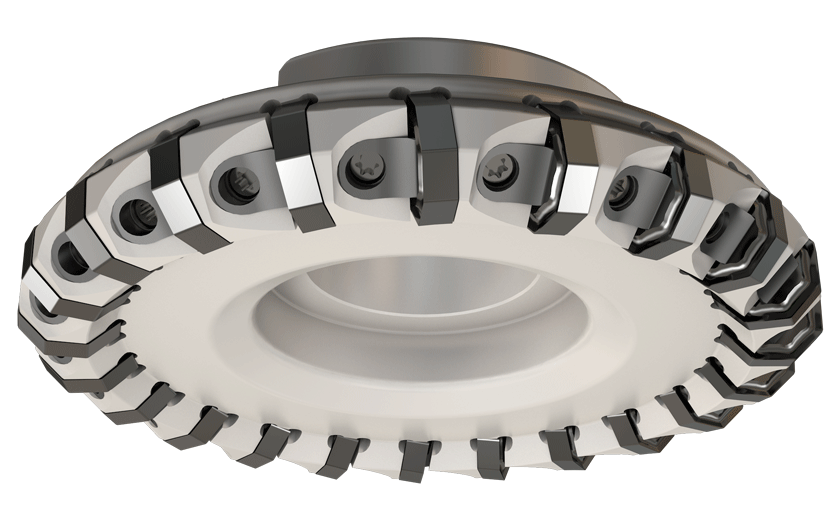

F45WG D4.0-14-1.5-FX-R08-Wedge lock 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed.

Dostępność: duża ilość

Cena brutto: 5 572,80 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

5572.80

Cena netto: 4 530,73 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 6 192,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3103875

F45WG D4.0-14-1.5-FX-R08

Podstawowe informacje
FamilyName	F45WG
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3103875
ProductName	F45WG D4.0-14-1.5-FX-R08
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Wedge lock 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed.
FamilyShortDesc	45° Face Mills Carrying Octagonal ONHU/MU 0806... Inserts with 16 Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3103875
Remarks	Note: Recommended wedge clamping torque: 75-80 lbfxinch
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Slanted Shoulder & Chamfer \|
APP1Name	Facing
APP2Name	Slanted Shoulder & Chamfer
ItemRemark	For internal coolant through the holder, use a matching coolant set (should be ordered separately)
Tool Type	45° Facemills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	4.4952
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3103875
Arbor Style	B
Connection Diameter Machine Side (DCONMS)	1-1/2"
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	4"
Cutting Diameter (DC/DCX)	4.47"
Cutting Diameter Maximum (DCX)	4.47"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	14
Depth of Cut Maximum (APMX)	0.22"
Hub Diameter (DHUB)	3.27"
Master Insert Identification (MIID)	ONHU 080608-TN
Overall Length (OAL)	2"
Tool Cutting Edge Angle (KAPR)	44.3 Degrees
