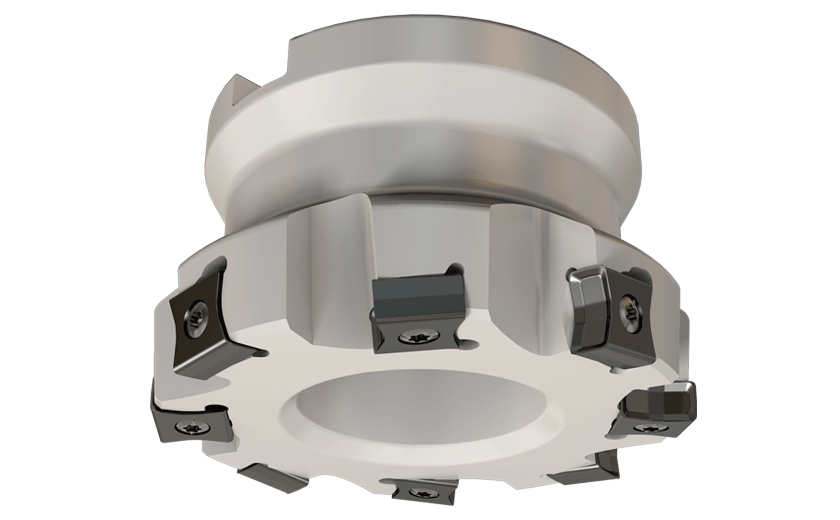

F86LNX D063-08-22-R-N11-86° face mills carrying all 8 cutting edges of LN..1106... tangentially clamped inserts.

Dostępność: duża ilość

Cena brutto: 5 064,39 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

5064.39

Cena netto: 4 117,39 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 504,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3103830

F86LNX D063-08-22-R-N11

Podstawowe informacje
FamilyName	F86LNX-11
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3103830
ProductName	F86LNX D063-08-22-R-N11
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	86° face mills carrying all 8 cutting edges of LN..1106... tangentially clamped inserts.
FamilyShortDesc	86° Face Mills Carrying all 8 Cutting Edges of LN..1106... Tangentially Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3103830
Remarks	For APMX>3 mm, Zeff is half the number indicated (see More Info) LNAR 1106 inserts should not be used on these cutters F86LNX cutters enable using all 8 cutting edges of the LNKX/LNMT 1106.. inserts- 4 R.H. in the peripheral position and 4 L.H. in the frontal position Feed should be limited to 0.25 mm/tooth
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \|
APP1Name	Facing
APP2Name	Shouldering
ItemRemark	Fine pitch
Tool Type	90° Facemills
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.7760
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3103830
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	22 mm
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	65.44 mm
Cutting Diameter (DC/DCX)	63 mm
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	8
Depth of Cut Maximum (APMX)	3 mm
Hub Diameter (DHUB)	59 mm
Master Insert Identification (MIID)	LNKX 1106PN-N MM
Overall Length (OAL)	40 mm
Tool Cutting Edge Angle (KAPR)	86 Degrees
