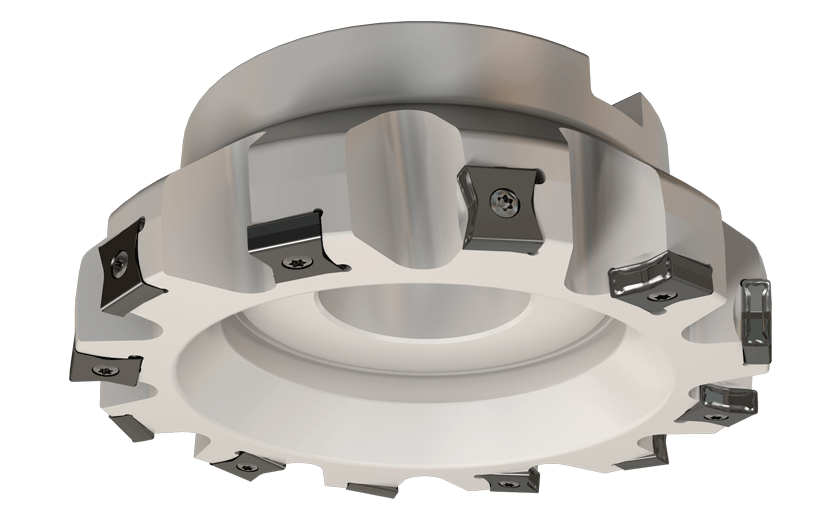

F86LNX D3.0-08-1.00-R-N15-86° face mills using all 8 cutting edges of LN..1506... tangentially clamped inserts.

Dostępność: duża ilość

Cena brutto: 3 401,73 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3401.73

Cena netto: 2 765,63 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 779,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3104412

F86LNX D3.0-08-1.00-R-N15

Podstawowe informacje
FamilyName	F86LNX-15
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3104412
ProductName	F86LNX D3.0-08-1.00-R-N15
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	86° face mills using all 8 cutting edges of LN..1506... tangentially clamped inserts.
FamilyShortDesc	86° Face Mills Using all 8 Cutting Edges of LN..1506... Tangentially Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3104412
Remarks	For ap>3.0 mm zeff is half the number indicated in the table. The F86LNX cutters enable using all 8 cutting edges of the LNKX/LNMT 1506.. inserts- 4 R.H. in the peripheral position and 4 L.H. in the frontal position.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \|
APP1Name	Facing
APP2Name	Shouldering
ItemRemark	For internal coolant, use a matching coolant set (should be ordered separately)
Tool Type	90° Facemills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	2.5662
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3104412
Arbor Style	B
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	3"
Cutting Diameter (DC/DCX)	3"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	8
Depth of Cut Maximum (APMX)	3"
Hub Diameter (DHUB)	2.76"
Master Insert Identification (MIID)	LNKX 1506PN-N PL
Overall Length (OAL)	2"
Tool Cutting Edge Angle (KAPR)	86 Degrees
