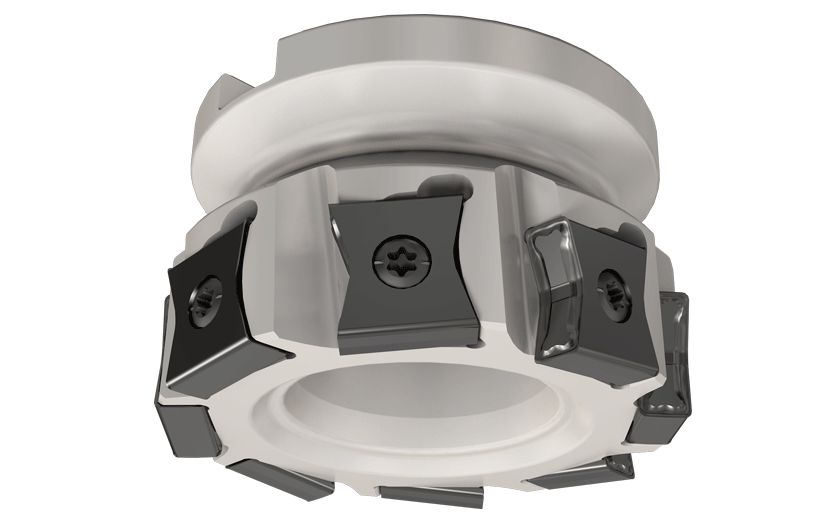

F90LN D4.00-08-1.50-R-N15-TANGMILL, 90° face mills with LN..1506... tangentially clamped inserts.

Dostępność: duża ilość

Cena brutto: 3 428,82 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3428.82

Cena netto: 2 787,66 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 809,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3102329

F90LN D4.00-08-1.50-R-N15

Podstawowe informacje
FamilyName	F90LN-N15
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3102329
ProductName	F90LN D4.00-08-1.50-R-N15
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	TANGMILL, 90° face mills with LN..1506... tangentially clamped inserts.
FamilyShortDesc	90° Face Mills with LN..1506... Tangentially Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3102329
Remarks	Note: Left-hand cutters are designated by a red groove For profile of machined wall, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \| Slotting \|
APP1Name	Facing
APP2Name	Shouldering
APP3Name	Slotting
ItemRemark	For internal coolant through the holder, use a matching coolant set (should be ordered separately)
Tool Type	90° Facemills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	4.0212
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3102329
Arbor Style	B
Connection Diameter Machine Side (DCONMS)	1-1/2"
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	4"
Cutting Diameter (DC/DCX)	4"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	8
Depth of Cut Maximum (APMX)	0.551"
Hub Diameter (DHUB)	3.189"
Master Insert Identification (MIID)	LNKX 1506PN-N PL
Overall Length (OAL)	2"
Tool Cutting Edge Angle (KAPR)	90 Degrees
