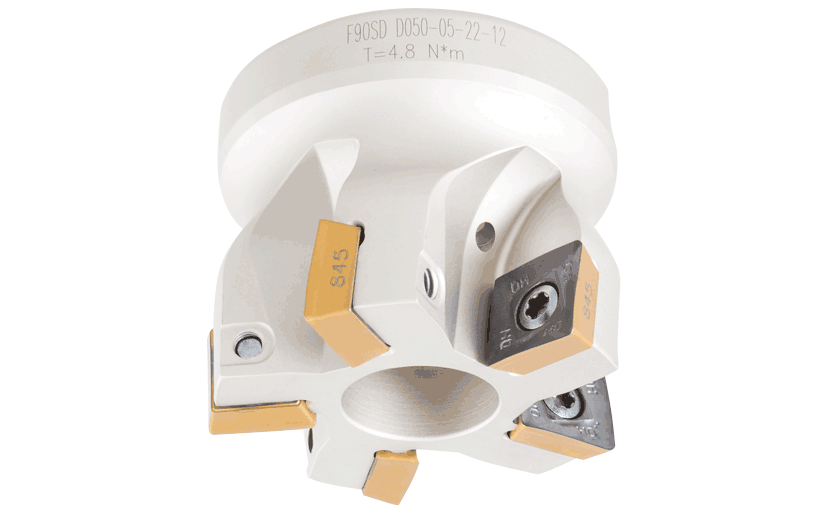

F90SD D2.00-05-0.75-12-Face mills Carrying square inserts.

Dostępność: duża ilość

Cena brutto: 1 888,56 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1888.56

Cena netto: 1 535,41 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 098,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3319839

F90SD D2.00-05-0.75-12

Podstawowe informacje
FamilyName	F90SD-12
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3319839
ProductName	F90SD D2.00-05-0.75-12
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Face mills Carrying square inserts.
FamilyShortDesc	Face Mills Carrying Square Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3319839
Remarks	1- with standard square insert 2- with FF (fast feed) insert
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Fast Feed Milling \| Rampdown \| Shouldering \| Slotting \|
APP1Name	Facing
APP2Name	Fast Feed Milling
APP3Name	Rampdown
APP4Name	Shouldering
APP5Name	Slotting
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.0362
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3319839
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	3/4"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	2"
Cutting Diameter (DC/DCX)	2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	5
Depth of Cut Maximum (APMX)	0.465"
Hub Diameter (DHUB)	1.85"
Master Insert Identification (MIID)	QDMT 1205PDN-RM
Overall Length (OAL)	1.51"
Tool Cutting Edge Angle (KAPR)	90 Degrees
