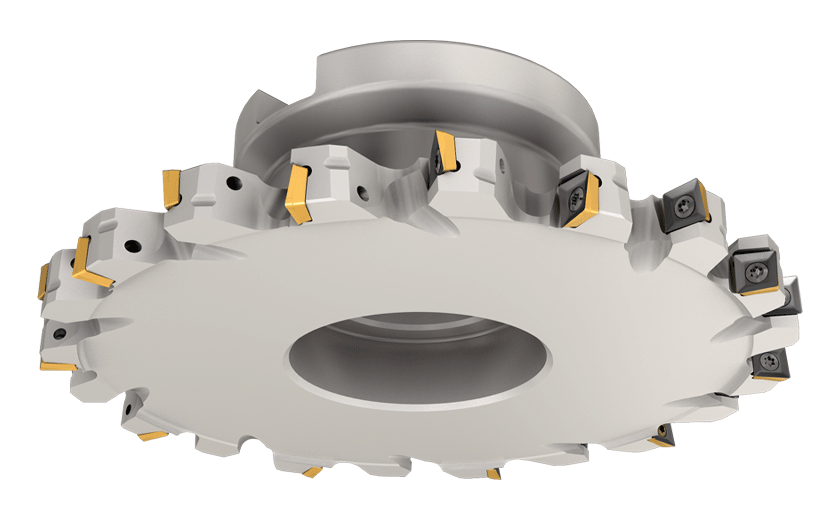

FDN D100-08-27-R06-HELIQUAD, Full slot, flange-type slotting cutters.

Dostępność: duża ilość

Cena brutto: 7 474,02 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

7474.02

Cena netto: 6 076,44 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 5 160,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3100746

FDN D100-08-27-R06

Podstawowe informacje
FamilyName	FDN
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3100746
ProductName	FDN D100-08-27-R06
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	HELIQUAD, Full slot, flange-type slotting cutters.
FamilyShortDesc	Full Slot Flange-Type Slotting Cutters
Link	https://www.Iscar.com/ecat/e.asp?cat=3100746
Remarks	For fully effective conditions, click on More Info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.7650
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3100746
Arbor Style	B
Cutting Diameter (DC)	100 mm
Cutting Depth Maximum (CDX)	26.4 mm
Cutting Item Count (CICT)	16
Depth of Cut Maximum (APMX)	8 mm
Flute Count (NOF)	16
Hub Diameter (DHUB)	55 mm
Master Insert Identification (MIID)	XOMT 060204-HQ
Overall Length (OAL)	40 mm
Peripheral Effective Cutting Edge Count (ZEFP)	8
Usable Length (LU)	28.8 mm
