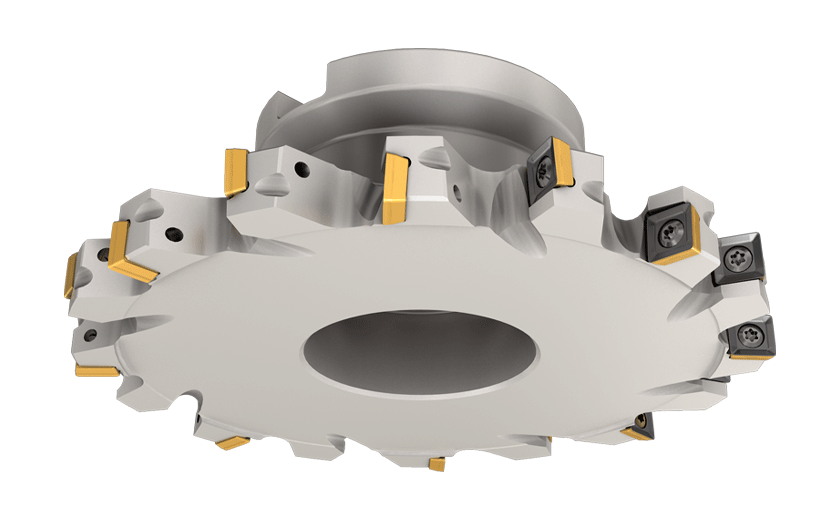

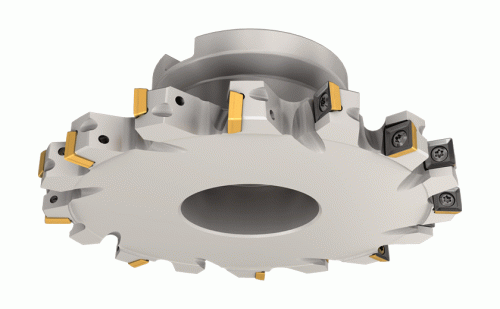

FDN D160-12-40-R10-HELIQUAD, Full slot, flange-type slotting cutters.

Dostępność: duża ilość

Cena brutto: 9 626,54 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

9626.54

Cena netto: 7 826,46 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 6 665,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3181162

FDN D160-12-40-R10

Podstawowe informacje
FamilyName	FDN
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3181162
ProductName	FDN D160-12-40-R10
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	HELIQUAD, Full slot, flange-type slotting cutters.
FamilyShortDesc	Full Slot Flange-Type Slotting Cutters
Link	https://www.Iscar.com/ecat/e.asp?cat=3181162
Remarks	For fully effective conditions, click on More Info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	2.0750
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3181162
Arbor Style	B
Cutting Diameter (DC)	160 mm
Cutting Depth Maximum (CDX)	46.9 mm
Cutting Item Count (CICT)	16
Depth of Cut Maximum (APMX)	12 mm
Flute Count (NOF)	16
Hub Diameter (DHUB)	80 mm
Master Insert Identification (MIID)	XPMT 100408-HQ
Overall Length (OAL)	50 mm
Peripheral Effective Cutting Edge Count (ZEFP)	8
Usable Length (LU)	33.5 mm
