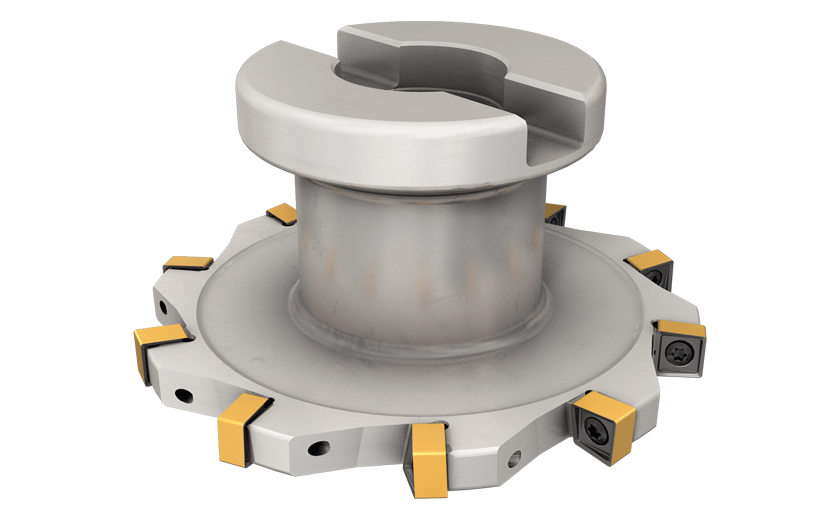

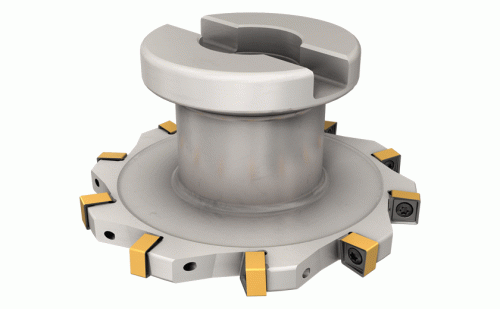

FDN D2.5-.275-06-XN06-Full slot flange type, slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges.

Dostępność: duża ilość

Cena brutto: 3 641,67 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3641.67

Cena netto: 2 960,71 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 4 046,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3421014

FDN D2.5-.275-06-XN06

Podstawowe informacje
FamilyName	FDN-XN06
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3421014
ProductName	FDN D2.5-.275-06-XN06
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Full slot flange type, slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges.
FamilyShortDesc	Full Slot Flange Type Slotting Cutters Carrying XNMU 0603 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3421014
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.7650
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3421014
Arbor Style	A
Cutting Diameter (DC)	2-1/2"
Cutting Depth Maximum (CDX)	0.67"
Cutting Item Count (CICT)	8
Depth of Cut Maximum (APMX)	0.275"
Flute Count (NOF)	6
Hub Diameter (DHUB)	1.441"
Master Insert Identification (MIID)	XNMU 0603...
Overall Length (OAL)	1.575"
Peripheral Effective Cutting Edge Count (ZEFP)	8
Usable Length (LU)	1.102"
