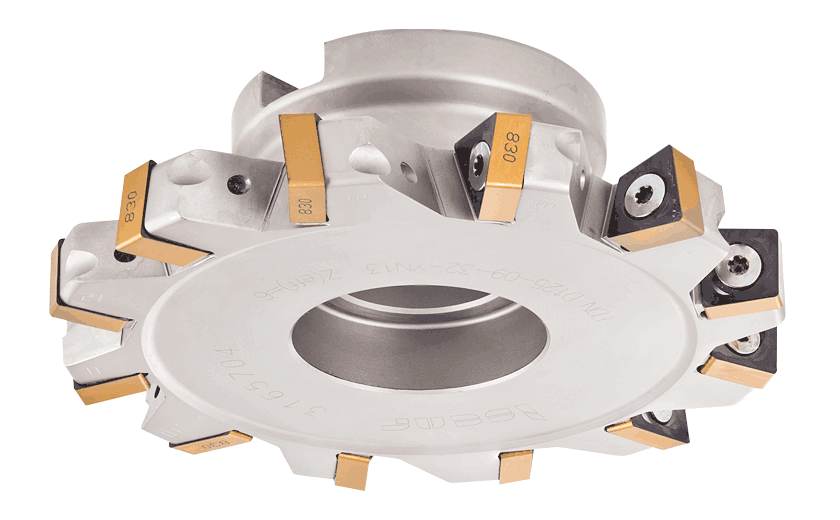

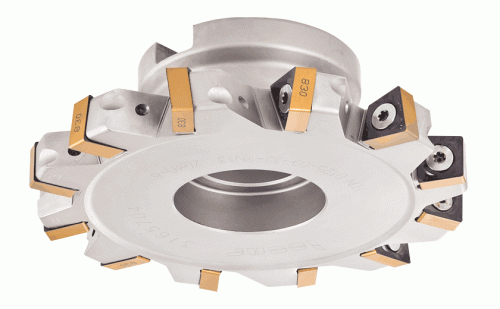

FDN D200-20-40-XN13-Full slot flange type, slotting cutters carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges.

Dostępność: duża ilość

Cena brutto: 13 931,57 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

13931.57

Cena netto: 11 326,48 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 9 632,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3106540

FDN D200-20-40-XN13

Podstawowe informacje
FamilyName	FDN-XN13
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3106540
ProductName	FDN D200-20-40-XN13
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Full slot flange type, slotting cutters carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges.
FamilyShortDesc	Full Slot Flange Type Slotting Cutters Carrying XNMU 1306 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3106540
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	4.0870
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3106540
Arbor Style	C
Cutting Diameter (DC)	200 mm
Cutting Depth Maximum (CDX)	53 mm
Cutting Item Count (CICT)	16
Depth of Cut Maximum (APMX)	20 mm
Flute Count (NOF)	16
Hub Diameter (DHUB)	92 mm
Master Insert Identification (MIID)	XNMU 1306
Overall Length (OAL)	63 mm
Peripheral Effective Cutting Edge Count (ZEFP)	8
