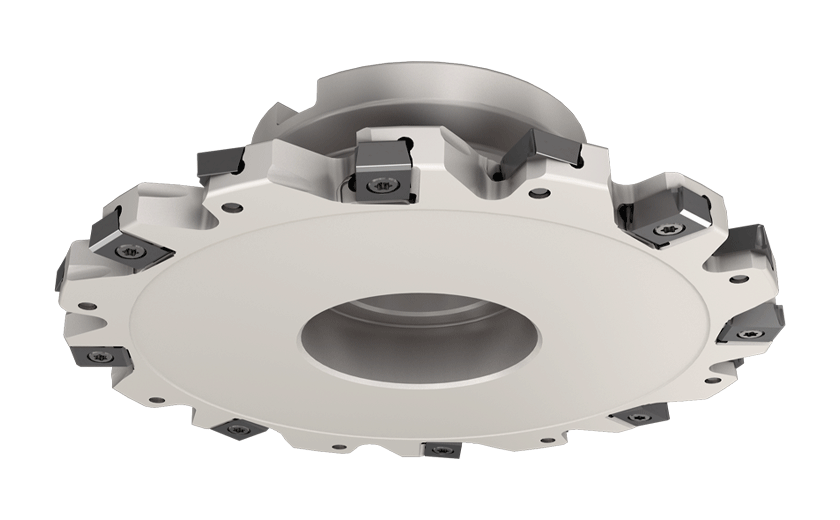

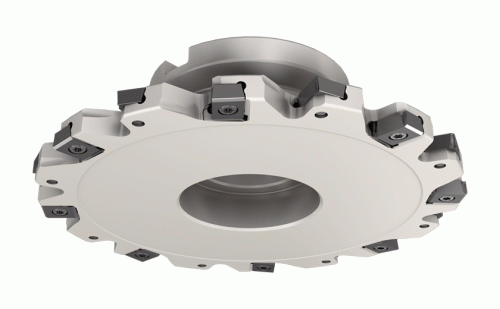

FDN D4.0-0.375-08-LN12-Full slot cutters carrying LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT).
Dostępność:
duża ilość
Cena brutto:
4 295,70 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 492,44 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
4 773,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3103145
Opis
FDN D4.0-0.375-08-LN12
| Podstawowe informacje | |
|---|---|
| FamilyName | FDN-LN12 |
| ToolType | Tool |
| Unit | I |
| PackSize | 1 |
| product_code | ISC3103145 |
| ProductName | FDN D4.0-0.375-08-LN12 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23242106 |
| FamilyDesc | Full slot cutters carrying LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT). |
| FamilyShortDesc | Full Slot Cutters Carrying LNET 12... Tangentially Mounted Inserts |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3103145 |
| Remarks | Each tool is supplied with screws for the thinnest specified insert. Verify use of correct screw for the insert being used. Slot width depends on the selected insert width. |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Bottom Shouldering | Side Slotting | Slotting | T Slotting | |
| APP1Name | T Slotting |
| APP2Name | Bottom Shouldering |
| APP3Name | Side Slotting |
| APP4Name | Slotting |
| ItemRemark | For CW=.37 and .39 use screw SR 14-500-L8.5@For CW=.45 use screw SR 14-500-L10.0 |
| Tool Type | Double-sided slotting cutters |
| Point Shape | |
| Measurement Type | Inch |
| Thread Standard | |
| Package Weight | 2.0900 |
| Style | |
| MSDS | 07995 |
| LocalField1 | 2 |
| Body Material | Steel |
| ManufacturerNo | 3103145 |
| Arbor Style | B |
| Cutting Diameter (DC) | 4" |
| Cutting Depth Maximum (CDX) | 1.07" |
| Cutting Item Count (CICT) | 10 |
| Cutting Width Maximum (CWX) | 0.394" |
| Cutting Width Minimum (CWN) | 3/8" |
| Flute Count (NOF) | 10 |
| Hub Diameter (DHUB) | 2.16" |
| Master Insert Identification (MIID) | LNET 126508-TN |
| Overall Length (OAL) | 1.57" |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Usable Length (LU) | 1.23" |
