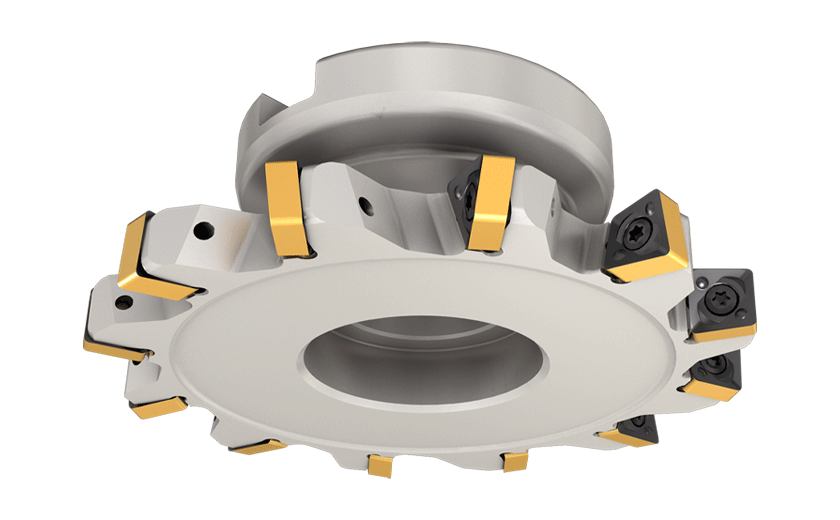

FDN D6.0-0.39-12-XN09-Full slot flange type, slotting cutters carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges.

Dostępność: duża ilość

Cena brutto: 7 004,70 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

7004.70

Cena netto: 5 694,88 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 7 783,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3393666

FDN D6.0-0.39-12-XN09

Podstawowe informacje
FamilyName	FDN-XN09
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3393666
ProductName	FDN D6.0-0.39-12-XN09
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Full slot flange type, slotting cutters carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges.
FamilyShortDesc	Full Slot Flange Type Slotting Cutters Carrying XNMU 0904 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3393666
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	4.5746
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3393666
Arbor Style	B
Connection Diameter Machine Side (DCONMS)	1-1/2"
Cutting Diameter (DC)	6"
Cutting Depth Maximum (CDX)	1.65"
Cutting Item Count (CICT)	16
Cutting Width (CW)	0.39"
Hub Diameter (DHUB)	3.15"
Master Insert Identification (MIID)	XNMU 0904...
Overall Length (OAL)	2-1/2"
Peripheral Effective Cutting Edge Count (ZEFP)	16
Usable Length (LU)	1.9"
