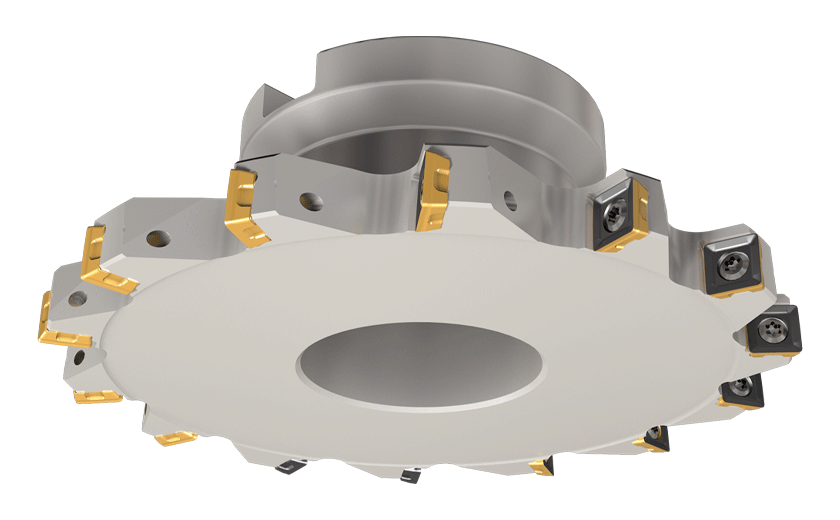

FSB D5.0-0.50-10-R10-Bottom-side cutting, flanged type slotting cutters.

Dostępność: duża ilość

Cena brutto: 5 611,50 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

5611.50

Cena netto: 4 562,20 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 6 235,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3101094

FSB D5.0-0.50-10-R10

Podstawowe informacje
FamilyName	FSB
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3101094
ProductName	FSB D5.0-0.50-10-R10
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Bottom-side cutting, flanged type slotting cutters.
FamilyShortDesc	Bottom-Side Cutting, Flanged Type Slotting Cutters
Link	https://www.Iscar.com/ecat/e.asp?cat=3101094
Remarks	For adaptation, click on More Info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \| Side Slotting \|
APP1Name	Facing
APP2Name	Shouldering
APP3Name	Side Slotting
ItemRemark
Tool Type	Half-sided slotting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	3.2077
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3101094
Arbor Style	B
Cutting Diameter (DC)	5"
Cutting Depth Maximum (CDX)	1.41"
Cutting Item Count (CICT)	12
Depth of Cut Maximum (APMX)	0.37"
Hub Diameter (DHUB)	2.56"
Master Insert Identification (MIID)	SPMT 100404R-HQ-M
Overall Length (OAL)	1-3/4"
Peripheral Effective Cutting Edge Count (ZEFP)	12
Usable Length (LU)	1/2"
