GHDL 12.7-2-External tools for turning, grooving and parting.

Dostępność: duża ilość

Cena brutto: 437,31 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

437.31

Cena netto: 355,54 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 485,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2800077

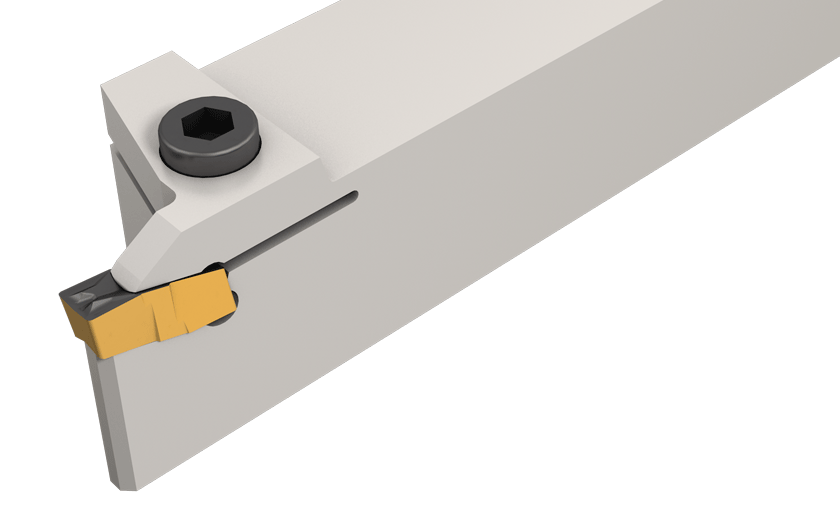

GHDL 12.7-2

Podstawowe informacje
FamilyName	GHDR/L (short pocket)
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC2800077
ProductName	GHDL 12.7-2
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	External tools for turning, grooving and parting.
FamilyShortDesc	External Tools for Turning, Grooving and Parting
Link	https://www.Iscar.com/ecat/e.asp?cat=2800077
Remarks	For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Ext. Grooving & Turning \| Ext. Profiling \| Parting \| Pulley V Grooving \| Threading (Ext.) Groove Turn T \|
APP1Name	Ext. Grooving
APP2Name	Ext. Grooving & Turning
APP3Name	Ext. Profiling
APP4Name	Parting
APP5Name	Pulley V Grooving
APP6Name	Threading (Ext.) Groove Turn T
ItemRemark	In the case of inserts with W<.08", tool pocket should be ground to .012" thinner than the insert's grooving width.
Tool Type	Turn-Groove Tools
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.3946
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2800077
Cutting Depth Maximum (CDX)	0.32"
Cutting Width Maximum (CWX)	1/8"
Cutting Width Minimum (CWN)	0.016"
Functional Width (WF)	0.47"
Head Length (LH)	1"
Overall Length (OAL)	4-1/2"
Shank Height (H)	1/2"
Shank Width (B)	1/2"
