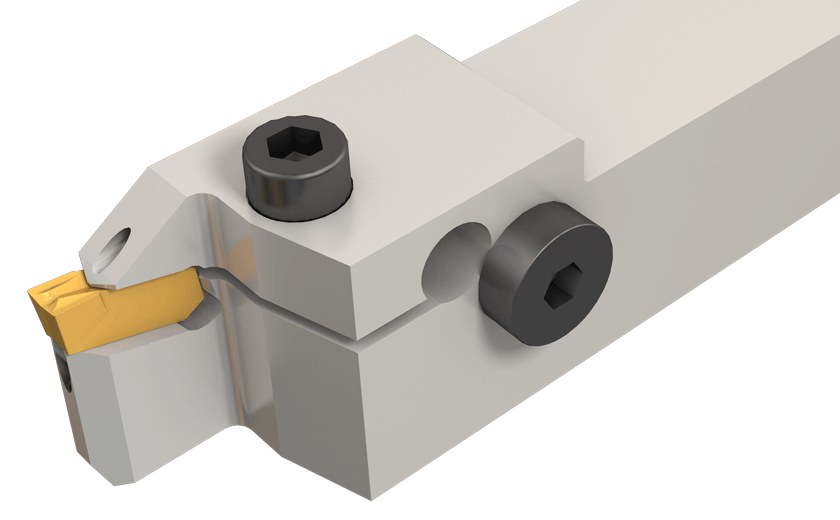

GHDL 20-4-JHP-Grooving and turning CUT-GRIP tools with channels for high-pressure coolant.

Dostępność: duża ilość

Cena brutto: 882,36 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

882.36

Cena netto: 717,37 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 980,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2801939

GHDL 20-4-JHP

Podstawowe informacje
FamilyName	GHDR/L-JHP (short pocket)
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2801939
ProductName	GHDL 20-4-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Grooving and turning CUT-GRIP tools with channels for high-pressure coolant.
FamilyShortDesc	Grooving and Turning Tools with Channels for High-Pressure Coolant
Link	https://www.Iscar.com/ecat/e.asp?cat=2801939
Remarks	For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified For more details click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Ext. Grooving & Turning \| Ext. Profiling \| Parting \| Pulley V Grooving \| Threading (Ext.) Groove Turn T \|
APP1Name	Ext. Grooving
APP2Name	Ext. Grooving & Turning
APP3Name	Ext. Profiling
APP4Name	Parting
APP5Name	Pulley V Grooving
APP6Name	Threading (Ext.) Groove Turn T
ItemRemark
Tool Type	Turn-Groove Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.3630
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	2801939
Cutting Depth Maximum (CDX)	10 mm
Cutting Width Maximum (CWX)	5 mm
Cutting Width Minimum (CWN)	4 mm
Functional Width (WF)	18.4 mm
Head Length (LH)	29 mm
Overall Length (OAL)	120 mm
Shank Height (H)	20 mm
Shank Width (B)	20 mm
